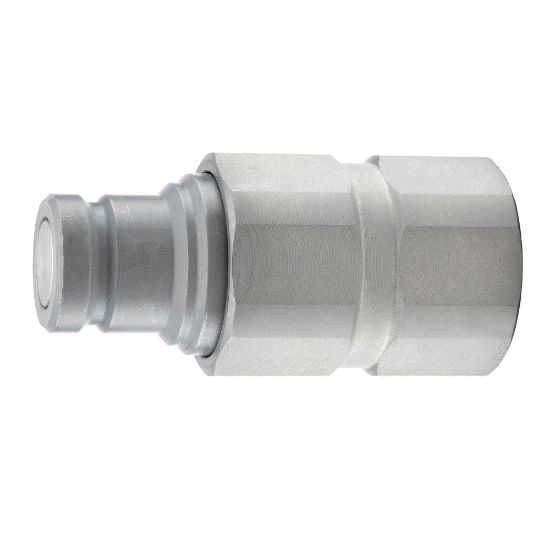

Non-Spill, Flat Face, ISO 16028, HTMA, Hydraulic Quick Couplings - FEM and FEC Series - FEM-502-10FO

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

Availability:	73 in stock
Partner Available:	411 in stock

SKU: FEM-502-10FO

$45.59

Products specifications

Attribute name	Attribute value
Body Material	Steel	Specifications Met	HTMA
Maximum Operating Temperature	250 °F	Product Type	Push to Connect
Seal Material	NBR	Flow Rate	12 Gal/min
Division	Quick Coupling Division	Minimum Operating Temperature	-40 °C
Application	Non-Spill	Plating Type	Zink Nickel
Dimensional Weight	0.15995203836930455 lb	Hex Size	36 mm
Coupling Half	Male Nipple	Body Size (inch)	1/2
Connection Type	Female NPSF	Valve Type	Non-spill
Maximum Operating Pressure	5000	Connection Thread Size (inch)	7/8 - 14

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
