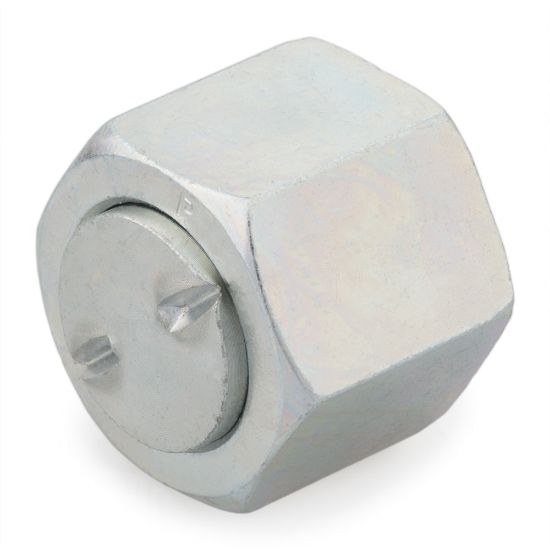

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 10 FNL-SS

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	4 in stock
Partner Available:	6 in stock

SKU: 10 FNL-SS

$136.13

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Body Material	Stainless Steel
Connection 2 Thread Size	na	Connection 3 Thread Size	na
Connection 2 Tube Outside Diameter	na	Connection 3 Tube Outside Diameter	na
Connection 4 Tube Outside Diameter	na	Shape	Cap
Connection 1 Type	Female O-Ring Face Seal	Dimensional Weight	0.07913669064748201
Connection 4 Type	na	Connection 2 Type	na
Connection 3 Type	na	O-Ring Material	na
Specifications Met	SAE J1453	Maximum Dynamic Pressure	6000
Connection Type	O-ring Face Seal	Connection 1 Tube Outside Diameter	5/8

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok

Literature and Reference Materials
