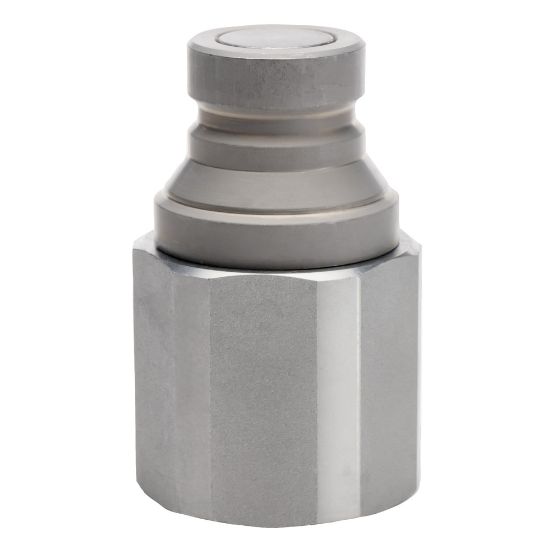

Non-Spill, Flat Face, ISO 16028, HTMA, Hydraulic Quick Couplings - FEM and FEC Series - FEM-1002-16FO

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

Availability:	Backordered
Partner Available:	3 in stock

SKU: FEM-1002-16FO

$151.27

Products specifications

Attribute name	Attribute value
Plating Type	Zink Nickel	Minimum Operating Temperature	-40 °F
Specifications Met	ISO 16028	Application	n/a
Body Material	Steel	Maximum Operating Temperature	250 °F
Hex Size	55 mm	Flow Rate	170 L/min
Product Type	Push to Connect	Division	Quick Coupling Division
Seal Material	Polyurethane/Nitrile	Dimensional Weight	0.6232014388489209 lb
Maximum Operating Pressure	2900	Coupling Half	Male Nipple
Connection Thread Size (inch)	1 5/16 - 12	Body Size (inch)	1
Connection Type	Female NPTF	Valve Type	Non-spill

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
