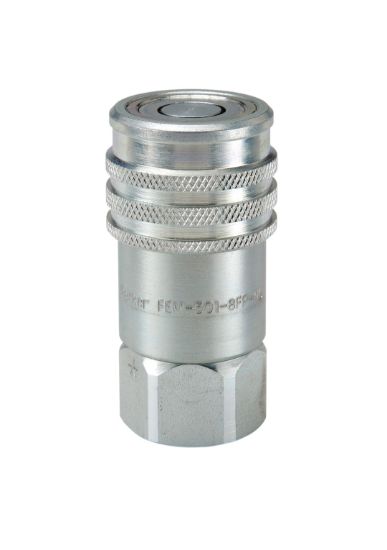

Non-Spill, Flat Face, ISO 16028, HTMA, Hydraulic Quick Couplings - FEM and FEC Series - FEM-251-4FP-NL

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

Availability:	4 in stock
Partner Available:	53 in stock

SKU: FEM-251-4FP-NL

$99.49

Products specifications

Attribute name	Attribute value
Body Material	Steel	Hex Size	27 mm
Maximum Operating Temperature	250 °F	Product Type	Push to Connect
Seal Material	Nitrile	Flow Rate	3 Gal/min
Division	Quick Coupling Division	Dimensional Weight	0.05341726618705036 lb
Application	Non-Spill	Minimum Operating Temperature	-40 °F
Plating Type	Zinc with clear trivalent chromate	Specifications Met	ISO 16028
Connection Thread Size (inch)	1/4 - 18	Body Size (inch)	1/4
Connection Type	Female NPSF	Valve Type	Non-spill
Maximum Operating Pressure	4568	Coupling Half	Female Coupler

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
