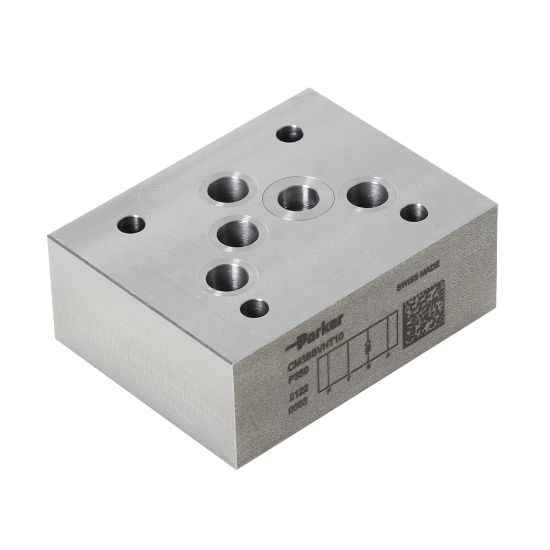

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Direct Operated Check Valve - Series CM - CM2PPVHT

Name: Direct Operated Check Valve - Series CM - CM2PPVHT
SKU: CM2PPVHT
Availability: OutOfStock

Parker direct operated check valves series CM in sandwich design are predestined for an easy configuration of stack systems. A large number of options offer a multitude of uses for hydraulic switching.

Availability:

Backordered

SKU: CM2PPVHT

Qty:

Products specifications

Attribute name	Attribute value
Division	Industrial Systems Division Europe	Maximum Operating Temperature	70 °C
Minimum Operating Temperature	-20 °C	Body Material	Steel
Maximum Operating Pressure	350 bar	Seal Material	FPM
Brand	Parker	Technology	Hydraulics
Product Series	Check Valve	Connection Size	n/a
For Fluid Type	Hydraulic Oil According to DIN 51524	Mounting Position	Unrestricted
Application	Industrial Hydraulic	Actuation Type	Mechanical
Cracking Pressure	0.5 bar	Media	Hydraulic Oil
Maximum Kinematic Viscosity	400 cSt	Minimum Ambient Temperature	-20 °C
Connection Type	n/a	Mounting Type	Sandwich Plate
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Flow Rate	60 L/min
Weight	0.7 kg	Minimum Kinematic Viscosity	20 cSt
Configuration	Check Valve in Port A	Flow Direction	Manifold to Directional Valve
Maximum Ambient Temperature	70 °C
Port Connection	NG06 / CETOP 03	Maximum Flow Rate	60 L/MIN
Function	From manifold to directional valve, check valve in channel P
