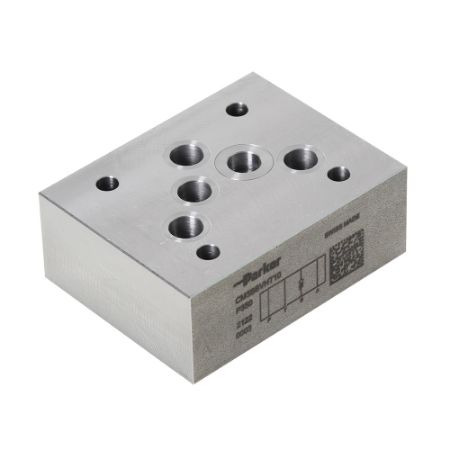

Direct Operated Check Valve - Series CM
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker direct operated check valves series CM in sandwich design are part of Parker's complete range of sandwich plate valves and ensure an easy configuration of conventional stack systems. Additionally they provide a very good price-performance ratio.
Series CM is available in two sizes, NG06 and NG10. Depending on the function required, one or two check valves are arranged in ports P, T, A, and B. Number and flow direction can be selected from the ordering code.
Markets:
• Industrial
• Machine tools
• Rubber & tire processing
Features/Benefits:
• 8 options for the arrangement of the check valve in the body - multitude of uses for hydraulic switching
• Valve bodies are made of steel - extra strength and durability
• Function can be changed by turning the valve - easy handling
• Short delivery time for most versions - no warehousing necessary
• Two sizes:
- CM2 - NG06 (CETOP 03)
- CM3 - NG10 (CETOP 05)
• Maximum operating pressure 350 bar
Applications:
• Suitable for general hydraulic applications
• Machine tools
• Tire presses
Read More...Series CM is available in two sizes, NG06 and NG10. Depending on the function required, one or two check valves are arranged in ports P, T, A, and B. Number and flow direction can be selected from the ordering code.
Markets:
• Industrial
• Machine tools
• Rubber & tire processing
Features/Benefits:
• 8 options for the arrangement of the check valve in the body - multitude of uses for hydraulic switching
• Valve bodies are made of steel - extra strength and durability
• Function can be changed by turning the valve - easy handling
• Short delivery time for most versions - no warehousing necessary
• Two sizes:
- CM2 - NG06 (CETOP 03)
- CM3 - NG10 (CETOP 05)
• Maximum operating pressure 350 bar
Applications:
• Suitable for general hydraulic applications
• Machine tools
• Tire presses
| Action | SKU | Availability | Partner Available | Price | Maximum Operating Pressure | Minimum Operating Temperature | Filter Efficiency Rating | Maximum Kinematic Viscosity | Body Material | Minimum Ambient Temperature | Mounting Type | Technology | Maximum Ambient Temperature | Configuration | Mounting Position | For Fluid Type | Maximum Operating Temperature | Seal Material | Weight | Media | Brand | Product Series | Cracking Pressure | Connection Type | Connection Size | Application | Actuation Type | Flow Direction | Division | Minimum Kinematic Viscosity | Maximum Flow Rate | Function | Maximum Flow Rate | Port Connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CM2AAFVHT | Backordered | 350 bar | -20 °C | ISO 4406 18/16/13 | 400 cSt | Steel | -20 °C | Sandwich Plate | Hydraulics | 70 °C | Check Valve in Port A | Unrestricted | Hydraulic Oil According to DIN 51524 | 70 °C | FPM | 0.7 kg | Hydraulic Oil | Parker | Check Valve | 0.5 bar | n/a | n/a | Industrial Hydraulic | Mechanical | Manifold to Directional Valve | Industrial Systems Division Europe | 20 cSt | 60 L/min | From manifold to directional valve, check valve in channel A | 60 L/MIN | NG06 / CETOP 03 | |||
| CM2AAV | Backordered | Backordered | $292.51 | 350 bar | -20 °C | ISO 4406 18/16/13 | 400 cSt | Steel | -20 °C | Sandwich Plate | Hydraulics | 70 °C | Check Valve in Port A | Unrestricted | Hydraulic Oil According to DIN 51524 | 60 °C | FPM | 0.9 kg | Hydraulic Oil | Parker | Check Valve | 0.3 bar | n/a | n/a | Industrial Hydraulic | Mechanical | Directional Valve to Manifold | Industrial Systems Division Europe | 20 cSt | 53 L/min | From directional valve to manifold, check valve in channel A | 53 L/MIN | NG06 / CETOP 03 | |
| CM2BBFVHT | Backordered | 350 bar | -20 °C | ISO 4406 18/16/13 | 400 cSt | Steel | -20 °C | Sandwich Plate | Hydraulics | 70 °C | Check Valve in Port A | Unrestricted | Hydraulic Oil According to DIN 51524 | 70 °C | FPM | 0.7 kg | Hydraulic Oil | Parker | Check Valve | 0.5 bar | n/a | n/a | Industrial Hydraulic | Mechanical | Manifold to Directional Valve | Industrial Systems Division Europe | 20 cSt | 60 L/min | From manifold to directional valve, check valve in channel B | 60 L/MIN | NG06 / CETOP 03 | |||
| CM2BBV | Backordered | Backordered | $292.51 | 350 bar | -20 °C | ISO 4406 18/16/13 | 400 cSt | Steel | -20 °C | Sandwich Plate | Hydraulics | 70 °C | Check Valve in Port B | Unrestricted | Hydraulic Oil According to DIN 51524 | 60 °C | FPM | 0.9 kg | Hydraulic Oil | Parker | Check Valve | 0.3 bar | n/a | n/a | Industrial Hydraulic | Mechanical | Directional Valve to Manifold | Industrial Systems Division Europe | 20 cSt | 53 L/min | From directional valve to manifold, check valve in channel B | 53 L/MIN | NG06 / CETOP 03 | |
| CM2BBVHT | Backordered | 350 bar | -20 °C | ISO 4406 18/16/13 | 400 cSt | Steel | -20 °C | Sandwich Plate | Hydraulics | 70 °C | Check Valve in Port A | Unrestricted | Hydraulic Oil According to DIN 51524 | 70 °C | FPM | 0.7 kg | Hydraulic Oil | Parker | Check Valve | 0.5 bar | n/a | n/a | Industrial Hydraulic | Mechanical | Manifold to Directional Valve | Industrial Systems Division Europe | 20 cSt | 60 L/min | From directional valve to manifold, check valve in channel B | 60 L/MIN | NG06 / CETOP 03 | |||
| CM2DDV | Backordered | Backordered | $332.31 | 350 bar | -20 °C | ISO 4406 18/16/13 | 400 cSt | Steel | -20 °C | Sandwich Plate | Hydraulics | 70 °C | Check Valve in Port A and B | Unrestricted | Hydraulic Oil According to DIN 51524 | 60 °C | FPM | 0.9 kg | Hydraulic Oil | Parker | Check Valve | 0.3 bar | n/a | n/a | Industrial Hydraulic | Mechanical | Directional Valve to Manifold | Industrial Systems Division Europe | 20 cSt | 53 L/min | From directional valve to manifold, check valve in channel A and B | 53 L/MIN | NG06 / CETOP 03 | |
| CM2PPV | Backordered | 4 in stock | $292.51 | 350 bar | -20 °C | ISO 4406 18/16/13 | 400 cSt | Steel | -20 °C | Sandwich Plate | Hydraulics | 70 °C | Check Valve in Port P | Unrestricted | Hydraulic Oil According to DIN 51524 | 60 °C | FPM | 0.9 kg | Hydraulic Oil | Parker | Check Valve | 0.3 bar | n/a | n/a | Industrial Hydraulic | Mechanical | Directional Valve to Manifold | Industrial Systems Division Europe | 20 cSt | 53 L/min | From manifold to directional valve, check valve in channel P | 53 L/MIN | NG06 / CETOP 03 | |
| CM2PPVHT | Backordered | 350 bar | -20 °C | ISO 4406 18/16/13 | 400 cSt | Steel | -20 °C | Sandwich Plate | Hydraulics | 70 °C | Check Valve in Port A | Unrestricted | Hydraulic Oil According to DIN 51524 | 70 °C | FPM | 0.7 kg | Hydraulic Oil | Parker | Check Valve | 0.5 bar | n/a | n/a | Industrial Hydraulic | Mechanical | Manifold to Directional Valve | Industrial Systems Division Europe | 20 cSt | 60 L/min | From manifold to directional valve, check valve in channel P | 60 L/MIN | NG06 / CETOP 03 | |||
| CM2PTVHT | Backordered | 350 bar | -20 °C | ISO 4406 18/16/13 | 400 cSt | Steel | -20 °C | Sandwich Plate | Hydraulics | 70 °C | Check Valve in Port A | Unrestricted | Hydraulic Oil According to DIN 51524 | 70 °C | FPM | 0.7 kg | Hydraulic Oil | Parker | Check Valve | 0.5 bar | n/a | n/a | Industrial Hydraulic | Mechanical | Manifold to Directional Valve | Industrial Systems Division Europe | 20 cSt | 60 L/min | From manifold to directional valve, check valve in channel A and B | 60 L/MIN | NG06 / CETOP 03 | |||
| CM2TTVHT | Backordered | 350 bar | -20 °C | ISO 4406 18/16/13 | 400 cSt | Steel | -20 °C | Sandwich Plate | Hydraulics | 70 °C | Check Valve in Port A | Unrestricted | Hydraulic Oil According to DIN 51524 | 70 °C | FPM | 0.7 kg | Hydraulic Oil | Parker | Check Valve | 0.5 bar | n/a | n/a | Industrial Hydraulic | Mechanical | Manifold to Directional Valve | Industrial Systems Division Europe | 20 cSt | 60 L/min | From directional valve to manifold, check valve in channel T | 60 L/MIN | NG06 / CETOP 03 | |||
| CM3AAFV | Backordered | 350 bar | -20 °C | ISO 4406 18/16/13 | 400 cSt | Steel | -20 °C | Sandwich Plate | Hydraulics | 70 °C | Check Valve in Port A | Unrestricted | Hydraulic Oil According to DIN 51524 | 60 °C | FPM | 1.7 kg | Hydraulic Oil | Parker | Check Valve | 0.3 bar | n/a | n/a | Industrial Hydraulic | Mechanical | Manifold to Directional Valve | Industrial Systems Division Europe | 20 cSt | 76 L/min | From manifold to directional valve, check valve in channel A | 76 L/MIN | NG10 / CETOP 05 | |||
| CM3AAV | Backordered | Backordered | $613.57 | 350 bar | -20 °C | ISO 4406 18/16/13 | 400 cSt | Steel | -20 °C | Sandwich Plate | Hydraulics | 70 °C | Check Valve in Port A | Unrestricted | Hydraulic Oil | 60 °C | FPM | 1.7 kg | Hydraulic Oil | Parker | Check Valve | 0.3 bar | n/a | n/a | Industrial Hydraulic | Mechanical | Directional Valve to Manifold | Industrial Systems Division Europe | 20 cSt | 76 L/min | From directional valve to manifold, check valve in channel A | 76 L/MIN | NG10 / CETOP 05 | |
| CM3AAVHT | Backordered | 350 bar | -20 °C | ISO 4406 18/16/13 | 400 cSt | Steel | -20 °C | Sandwich Plate | Hydraulics | 70 °C | Check Valve in Port A | Unrestricted | Hydraulic Oil According to DIN 51524 | 70 °C | FPM | 2.0 kg | Hydraulic Oil | Parker | Check Valve | 0.5 bar | n/a | n/a | Industrial Hydraulic | Mechanical | Manifold to Directional Valve | Industrial Systems Division Europe | 20 cSt | 120 L/min | From manifold to directional valve, check valve in channel A | 120 L/MIN | NG10 / CETOP 05 | |||
| CM3BBFV | Backordered | 350 bar | -20 °C | ISO 4406 18/16/13 | 400 cSt | Steel | -20 °C | Sandwich Plate | Hydraulics | 70 °C | Check Valve in Port B | Unrestricted | Hydraulic Oil According to DIN 51524 | 60 °C | FPM | 1.7 kg | Hydraulic Oil | Parker | Check Valve | 0.3 bar | n/a | n/a | Industrial Hydraulic | Mechanical | Manifold to Directional Valve | Industrial Systems Division Europe | 20 cSt | 76 L/min | From manifold to directional valve, check valve in channel B | 76 L/MIN | NG10 / CETOP 05 | |||
| CM3BBFVHT | Backordered | 350 bar | -20 °C | ISO 4406 18/16/13 | 400 cSt | Steel | -20 °C | Sandwich Plate | Hydraulics | 70 °C | Check Valve in Port A | Unrestricted | Hydraulic Oil According to DIN 51524 | 70 °C | FPM | 2.0 kg | Hydraulic Oil | Parker | Check Valve | 0.5 bar | n/a | n/a | Industrial Hydraulic | Mechanical | Manifold to Directional Valve | Industrial Systems Division Europe | 20 cSt | 120 L/min | From manifold to directional valve, check valve in channel B | 120 L/MIN | NG10 / CETOP 05 | |||
| CM3BBV | Backordered | Backordered | $613.57 | 350 bar | -20 °C | ISO 4406 18/16/13 | 400 cSt | Steel | -20 °C | Sandwich Plate | Hydraulics | 70 °C | Check Valve in Port B | Unrestricted | Hydraulic Oil According to DIN 51524 | 60 °C | FPM | 1.7 kg | Hydraulic Oil | Parker | Check Valve | 0.3 bar | n/a | n/a | Industrial Hydraulic | Mechanical | Directional Valve to Manifold | Industrial Systems Division Europe | 20 cSt | 76 L/min | From directional valve to manifold, check valve in channel B | 76 L/MIN | NG10 / CETOP 05 | |
| CM3BBVHT | Backordered | 350 bar | -20 °C | ISO 4406 18/16/13 | 400 cSt | Steel | -20 °C | Sandwich Plate | Hydraulics | 70 °C | Check Valve in Port A | Unrestricted | Hydraulic Oil According to DIN 51524 | 70 °C | FPM | 2.0 kg | Hydraulic Oil | Parker | Check Valve | 0.5 bar | n/a | n/a | Industrial Hydraulic | Mechanical | Manifold to Directional Valve | Industrial Systems Division Europe | 20 cSt | 120 L/min | From directional valve to manifold, check valve in channel B | 120 L/MIN | NG10 / CETOP 05 | |||
| CM3DDFV | Backordered | 350 bar | -20 °C | ISO 4406 18/16/13 | 400 cSt | Steel | -20 °C | Sandwich Plate | Hydraulics | 70 °C | Check Valve in Port A and B | Unrestricted | Hydraulic Oil According to DIN 51524 | 60 °C | FPM | 1.7 kg | Hydraulic Oil | Parker | Check Valve | 0.3 bar | n/a | n/a | Industrial Hydraulic | Mechanical | Manifold to Directional Valve | Industrial Systems Division Europe | 20 cSt | 76 L/min | From manifold to directional valve, check valve in channel A and B | 76 L/MIN | NG10 / CETOP 05 | |||
| CM3DDV | Backordered | Backordered | $557.32 | 350 bar | -20 °C | ISO 4406 18/16/13 | 400 cSt | Steel | -20 °C | Sandwich Plate | Hydraulics | 70 °C | Check Valve in Port A and B | Unrestricted | Hydraulic Oil According to DIN 51524 | 60 °C | FPM | 1.7 kg | Hydraulic Oil | Parker | Check Valve | 0.3 bar | n/a | n/a | Industrial Hydraulic | Mechanical | Directional Valve to Manifold | Industrial Systems Division Europe | 20 cSt | 76 L/min | From directional valve to manifold, check valve in channel A and B | 76 L/MIN | NG10 / CETOP 05 | |
| CM3PPV | Backordered | Backordered | $520.11 | 350 bar | -20 °C | ISO 4406 18/16/13 | 400 cSt | Steel | -20 °C | Sandwich Plate | Hydraulics | 70 °C | Check Valve in Port P | Unrestricted | Hydraulic Oil According to DIN 51524 | 60 °C | FPM | 1.7 kg | Hydraulic Oil | Parker | Check Valve | 0.3 bar | n/a | n/a | Industrial Hydraulic | Mechanical | Directional Valve to Manifold | Industrial Systems Division Europe | 20 cSt | 76 L/min | From manifold to directional valve, check valve in channel P | 76 L/MIN | NG10 / CETOP 05 |
