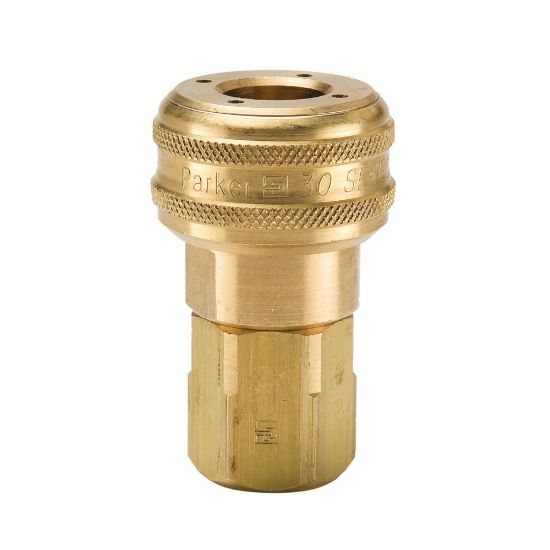

Industrial Interchange, Push to Connect, Quick Connect Air Couplers - 30 Series - B33-SL

Parker's general purpose quick connect air couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	6 in stock

SKU: B33-SL

$41.12

Products specifications

Attribute name	Attribute value
Sleeve Type	Push to connect w/ sleeve-lok	Lock Type	Pawls
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B	Media	Low pressure fluids and compressed air
Valve Type	Tubular	Coupling Half	Coupler
Division	Quick Coupling Division	Seal Material	Nitrile
Maximum Operating Pressure	300 psi	Application	Air
Body Material	BRASS	Connection Hose I.D. (inch)	na
Micron Rating	23 Nominal; 45 Absolute	Body Size (inch)	1/4
Thread Style	Female	Connection Thread Size (inch)	1/4 - 18
Connection Type	NPTF
