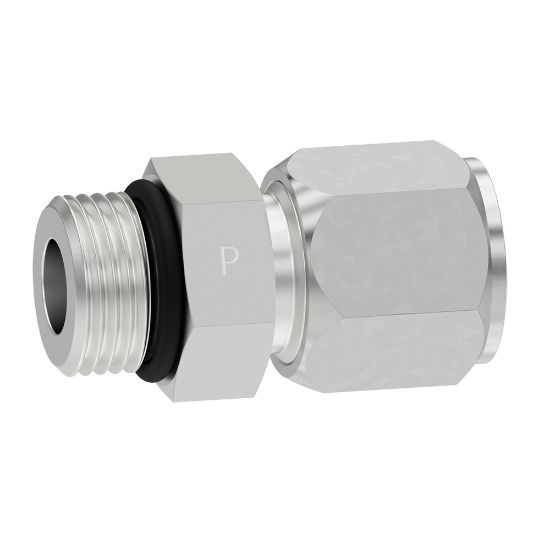

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Ferulok 24° Flareless Fittings - 10 F5BU-SS

Parker's Ferulok 24° Flareless fittings create a visible heavy bite allowing easy inspection and a rear compression grip which firmly holds the nut and tubing, dampening the effects of vibration.

Availability:	Backordered
Partner Available:	8 in stock

SKU: 10 F5BU-SS

$105.27

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 4 Size	na
Dimensional Weight	0.062320143884892085 lb	Maximum Dynamic Pressure	5000 psi
Specifications Met	SAE J514	Connection Type	Flareless Bite Type
Connection 4 Tube Outside Diameter	na
Shape	Straight	Body Material	Stainless Steel
Connection 3 Style	na	Connection 3 Thread Size (inch)	na
Connection 2 Thread Size (inch)	7/8-14	Connection Style	Tube to SAE Straight Thread
Connection 1 Style	Male Flareless Bite Type	Connection 2 Style	Male SAE-ORB
Connection 1 Tube O.D. (inch)	5/8	O-ring	90 Durometer Nitrile
Connection 2 Tube O.D. (inch)	na	Connection 3 Tube O.D. (inch)	na
