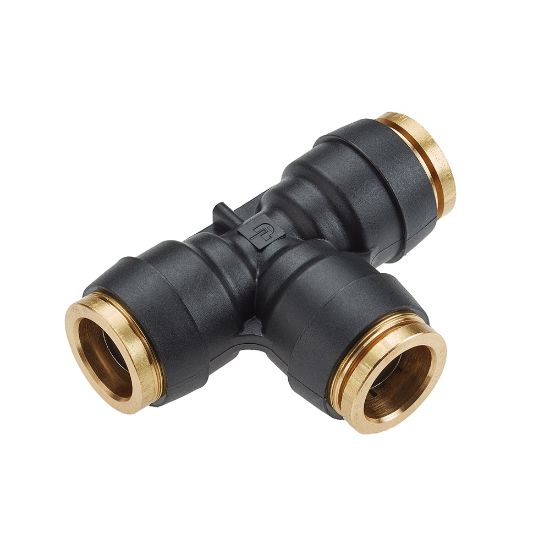

Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR - 364PTC-4

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

Availability:	53 in stock
Partner Available:	637 in stock

SKU: 364PTC-4

$19.26

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-45.5 °C	Maximum Operating Temperature	110 °C
O-Ring Material	Buna N	Tube Material	Stainless Steel
Application	Air Brakes	Body Material	Composite
Maximum Operating Pressure	250 psi	Division	Fluid System Connectors Division
Collet Material	Brass	Connection Type	NPTF
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J2494-3	Dimensional Weight	0.2759 lb
Connection 1 Type	Push-to-Connect	Connection 3 Type	Push-to-Connect
Connection 2 Size	1/4"	Thread Sealant Material	n/a
Connection 2 Type	Push-to-Connect	Body Material	Composite
Configuration	Tube to Tube	Connection 1 Size	1/4"
Shape	Tee	Connection 3 Size	1/4"
