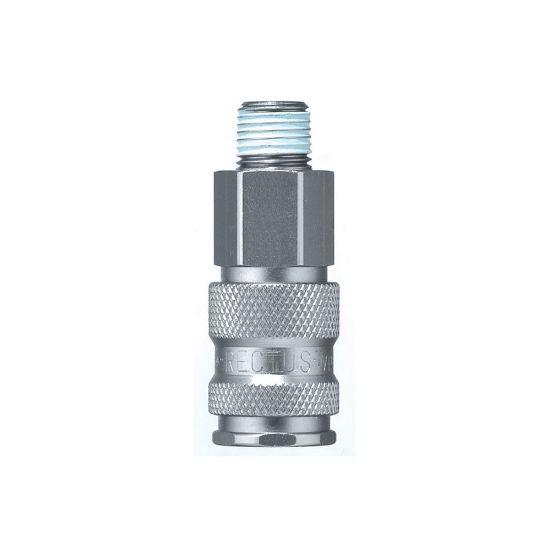

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25KBAK17BVN

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25KBAK17BVN
SKU: 25KBAK17BVN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25KBAK17BVN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Sleeve Material	BRASS	Specifications Met	RoHS
Shape	Straight	Industry	Transportation
Valve Included	Yes	Coupling Half	Coupler
Technology	Fluid & Gas Handling	Minimum Operating Temperature	5 °F
Application	In-Plant Automotive	Seal Material	FKM
For Fluid Type	Gases	Outside Diameter	23 mm
Length	59 mm	Hex Size	19 mm
Region of Origin	Germany	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Brand	Rectus
Diameter	7.8 mm (nominal)	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Connection Size	R 3/8	Interchange Type	European Profile
Function	Double Shut-Off	Connection Type	BSPT DIN 2999 Tapered
Maximum Operating Temperature	392 °F	Valve Type	High Flow Valve
Product Series	Series 25	Weight	0.1018 kg
Flow Rate	7.1 L/min (water)
Materials of Construction	Brass, Nickel-plated	Version	Double Shut-Off
Coupling Half	Coupler	Connection Size	3/8"
Connection Type	Male, BSPT
