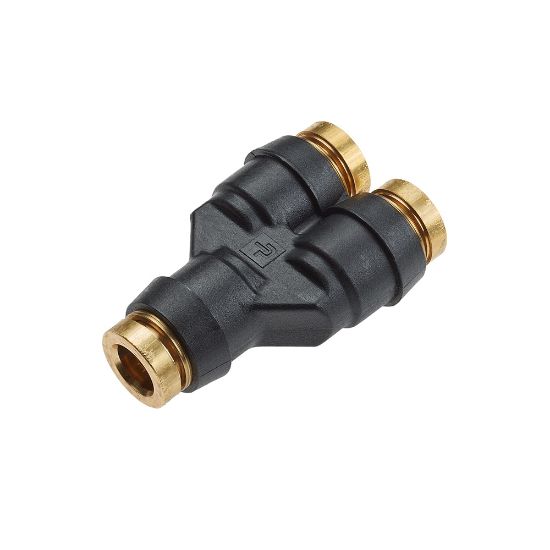

Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR - 362PTC-4

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

Availability:	21 in stock
Partner Available:	137 in stock

SKU: 362PTC-4

$30.91

Products specifications

Attribute name	Attribute value
Connection Type	NPTF	Minimum Operating Temperature	-45.5 °C
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J2494-3	O-Ring Material	Buna N
Maximum Operating Pressure	17 bar	Division	Fluid System Connectors Division
Collet Material	Brass	Maximum Operating Temperature	110 °C
Dimensional Weight	0.2759 lb	Tube Material	Stainless Steel
Application	Air Brakes	Body Material	Composite
Configuration	Tube to Tube	Connection 1 Size	1/4"
Connection 2 Type	Push-to-Connect	Connection 1 Type	Push-to-Connect
Connection 2 Size	1/4"	Connection 3 Type	Push-to-Connect
Body Material	Composite	Thread Sealant Material	n/a
Connection 3 Size	1/4"	Shape	Wye
