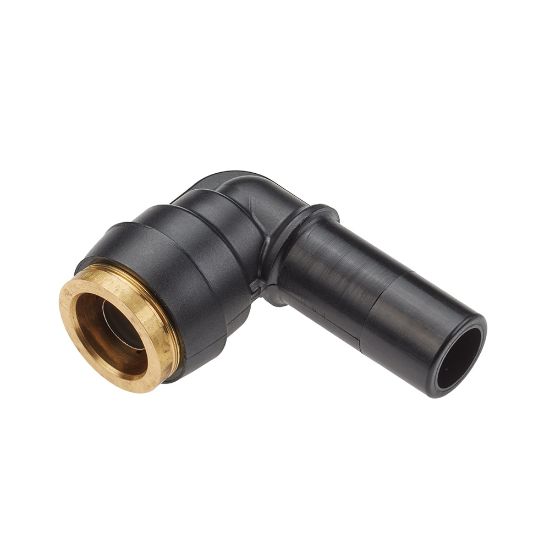

Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR - 369PTCSP-4-4

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

Availability:	Backordered
Partner Available:	50 in stock

SKU: 369PTCSP-4-4

$8.08

Products specifications

Attribute name	Attribute value
Dimensional Weight	0.2759 lb	Body Material	Composite
Tube Material	Stainless Steel	Application	Air Brakes
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J2494-3	Connection Type	NPTF
O-Ring Material	Buna N	Maximum Operating Pressure	17 bar
Maximum Operating Temperature	93 °C	Minimum Operating Temperature	-50 °F
Collet Material	Brass	Division	Fluid System Connectors Division
Connection 2 Type	Plug-in Stem	Configuration	Tube to Plug-In Stem
Connection 2 Size	1/4"	Connection 1 Size	1/4"
Shape	Elbow 90° - Plug-in	Connection 1 Type	Push-to-Connect
Body Material	Composite	Thread Sealant Material	n/a
