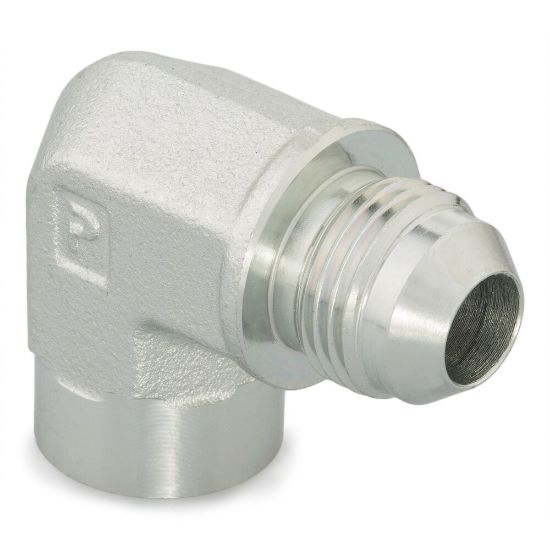

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10 DTX-B

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	Backordered
Partner Available:	Backordered

SKU: 10 DTX-B

$49.79

Products specifications

Attribute name	Attribute value
Body Material	BRASS	Division	Tube Fittings Division
Connection 4 Size	na	Maximum Dynamic Pressure	2000 psi
O-Ring Material	na	Specifications Met	SAE J514
Shape	90° Elbow	Connection Type	Tube to NPT
Connection 2 Thread Size	1/2-14 inch	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Connection 2 Tube Outside Diameter	na
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Connection 1 Size	Male 37° Flare	Connection 2 Size	Female NPT/NPTF
Connection 3 Size	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok
