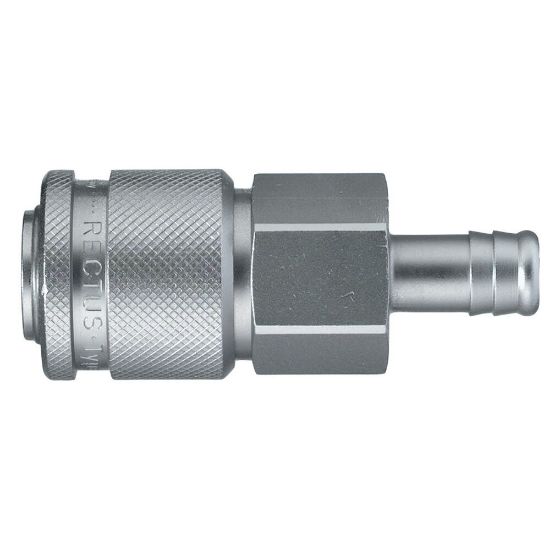

Quick Coupling with ISO 6150 B Profile, Series 37 - 37KATF10MPN

Name: Quick Coupling with ISO 6150 B Profile, Series 37 - 37KATF10MPN
SKU: 37KATF10MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 11 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile and according to US MIL-SPEC 4109. Available made of brass.

Availability:

Backordered

SKU: 37KATF10MPN

Qty:

Products specifications

Attribute name	Attribute value
Hex Size	30 mm	Flow Rate	2350 L/min
Seal Material	NBR	Diameter	11 nom
Valve Included	Yes	Version	Single Shut-Off
Minimum Operating Temperature	-20 °C	Maximum Operating Pressure	35 bar
Length	86 mm	Maximum Operating Temperature	100 °C
Division	Low Pressure Connectors Europe Division	Outside Diameter	35 mm
Type	Coupling	Material	Brass - nickel plated
Connection Type	Hose Barb	Hose I.D.	10
Connection Thread Size (inch)	na
