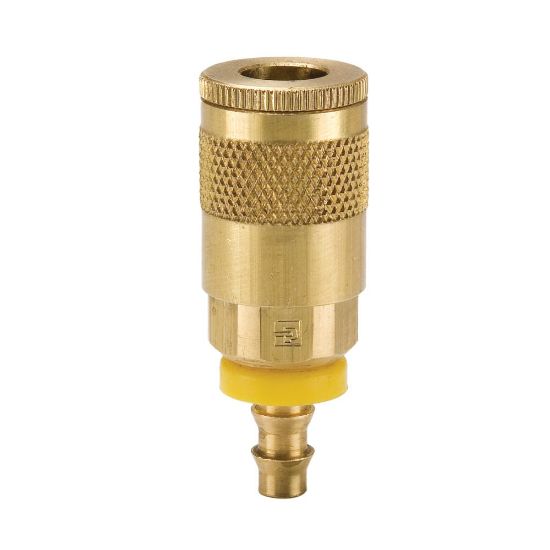

Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series - B10-5BP

Parker's general purpose Tru-Flate pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	3 in stock
Partner Available:	118 in stock

SKU: B10-5BP

$29.03

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Seal Material	Nitrile
Division	Quick Coupling Division	Maximum Operating Pressure	300 psi
Maximum Operating Temperature	250 °F	Product Type	Manual Connect
Application	Pneumatic	Interchange Type	Tru-Flate design
Valve Type	Tubular	Hex Size	na inch
Dimensional Weight	0.026658673061550762 lb	Plating Type	na
Body Material	BRASS	Hose I.D. (inch)	3/8
Body Size (inch)	1/4	Connection Thread Size (inch)	na
Coupling Half	Female Coupler	Connection Type	Push-Lok hose barb

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
