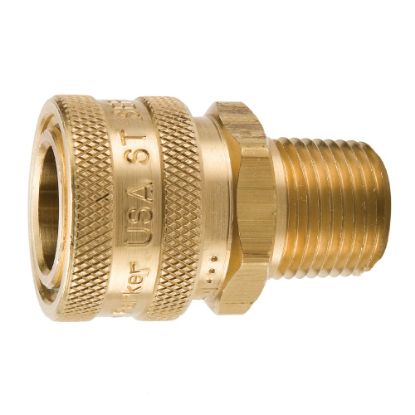

High Flow, Unvalved, Hydraulic Quick Couplings - ST Series - BST-1

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Availability:	Backordered
Partner Available:	1803 in stock

SKU: BST-1

$13.68

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Product Type	Push to Connect
Flow Rate	3 Gal/min	Maximum Operating Temperature	250 °F
Valve Type	Unvalved	Minimum Operating Temperature	-40 °F
Dimensional Weight	0.013329336530775381 lb	Application	Hydraulics
Division	Quick Coupling Division	Hex Size	0.56 inch
Connection Thread Size (inch)	1/8 - 27	Connection Type	Female NPTF
Maximum Operating Pressure	2500	Body Material	BRASS
Body Size (inch)	1/8	Coupling Half	Female Coupler
