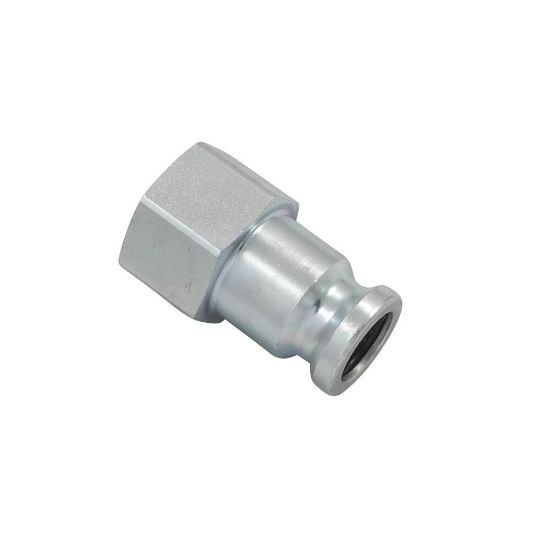

Quick Coupling with Parker own Profile, Series 29 - 29SFIW21SPZ

Name: Quick Coupling with Parker own Profile, Series 29 - 29SFIW21SPZ
SKU: 29SFIW21SPZ
Availability: OutOfStock

Quick coupling system with nominal diameter 13 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of Steel zinc plated.

Availability:

Backordered

SKU: 29SFIW21SPZ

Qty:

Products specifications

Attribute name	Attribute value
Materials of Construction	Steel zinc plated	Flow Rate	2550 L/min
Seal Material	NBR	Valve Included	No
Maximum Operating Pressure	35 bar	Hex Size	27 mm
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Version	Single Shut-Off	Length	44 mm
Diameter	13 nom	Minimum Operating Temperature	-20 °C
Outside Diameter	n/a
Connection Thread Size (inch)	1/2	Connection Type	Female Thread - parallel
Type	Plug	Hose I.D.	na
