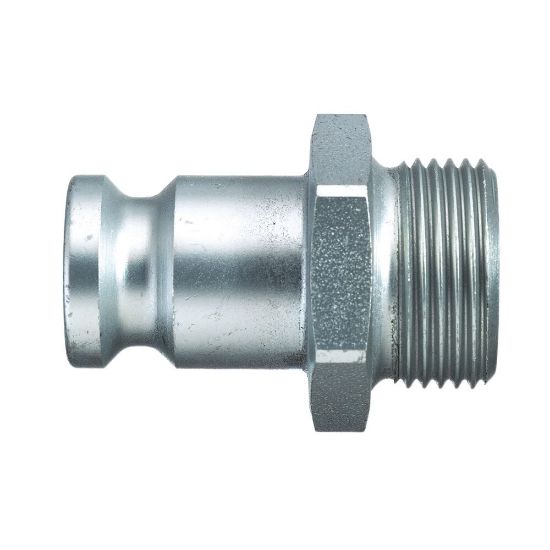

Quick Coupling with Parker own Profile, Series 29 - 29SFAW21SPZ

Name: Quick Coupling with Parker own Profile, Series 29 - 29SFAW21SPZ
SKU: 29SFAW21SPZ
Availability: OutOfStock

Quick coupling system with nominal diameter 13 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of Steel zinc plated.

Availability:

Backordered

SKU: 29SFAW21SPZ

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate	2550 L/min	Maximum Operating Temperature	100 °C
Materials of Construction	Steel zinc plated	Division	Low Pressure Connectors Europe Division
Diameter	13 nom	Maximum Operating Pressure	35 bar
Outside Diameter	n/a	Hex Size	24 mm
Minimum Operating Temperature	-20 °C	Version	Single Shut-Off
Valve Included	No	Length	48 mm
Seal Material	NBR
Type	Plug	Hose I.D.	na
Connection Type	Male Thread - parallel	Connection Thread Size (inch)	1/2
