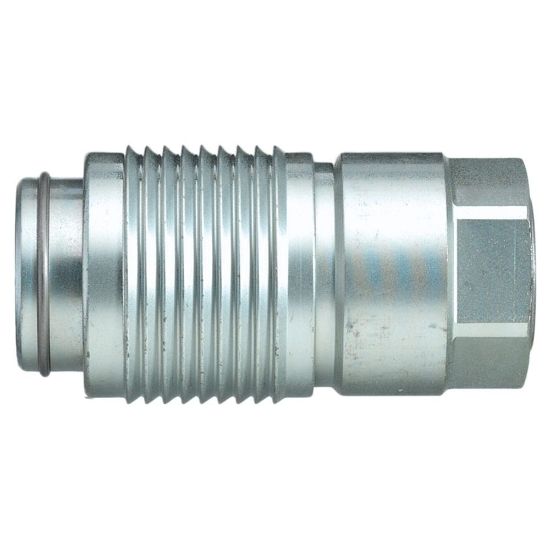

Quick Coupling with Parker own Profile, Series 29 - 29KAIW21SPZ

Name: Quick Coupling with Parker own Profile, Series 29 - 29KAIW21SPZ
SKU: 29KAIW21SPZ
Availability: OutOfStock

Quick coupling system with nominal diameter 13 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of Steel zinc plated.

Availability:

Backordered

SKU: 29KAIW21SPZ

Qty:

Products specifications

Attribute name	Attribute value
Length	78 mm	Maximum Operating Pressure	35 bar
Diameter	13 nom	Outside Diameter	40 mm
Valve Included	Yes	Minimum Operating Temperature	-20 °C
Version	Single Shut-Off	Hex Size	n/a
Maximum Operating Temperature	100 °C	Flow Rate	2550 L/min
Division	Low Pressure Connectors Europe Division	Seal Material	NBR
Materials of Construction	Steel zinc plated
Connection Type	Female Thread - parallel	Type	Coupling
Hose I.D.	na	Connection Thread Size (inch)	1/2
