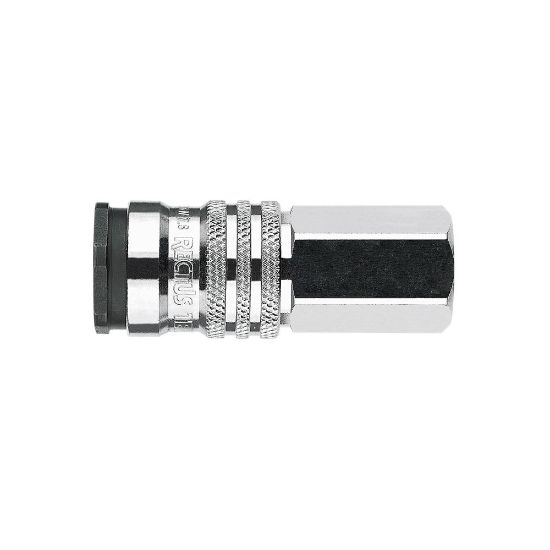

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1700KAIW21SPN

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1700KAIW21SPN
SKU: 1700KAIW21SPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 1700KAIW21SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	Steel
Seal Material	NBR	Shape	Straight
Minimum Operating Temperature	-4 °F	Coupling Half	Coupler
Maximum Operating Temperature	212 °F	For Fluid Type	Air
Technology	Pneumatics	Industry	General Industrial
Outside Diameter	27 mm	Hex Size	24 mm
Region of Origin	Germany	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Brand	Rectus	Function	Single Shut-Off
Valve Type	Ultra High Flow Valve	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Connection Size	G 1/2	Interchange Type	European Profile
Flow Rate	3580 L/min	Connection Type	BSPP ISO 228 Parallel
Length	68 mm	Application	Energy Management
Diameter	10 mm (nominal)	Product Series	Series 1700
Sleeve Material	Steel (QPQ-treated)	Compatible Fitting	Series 27 Plug
Materials of Construction	Steel	Version	Single Shut-Off
Coupling Half	Coupler	Connection Size	1/2"
Connection Type	Female, BSPP
