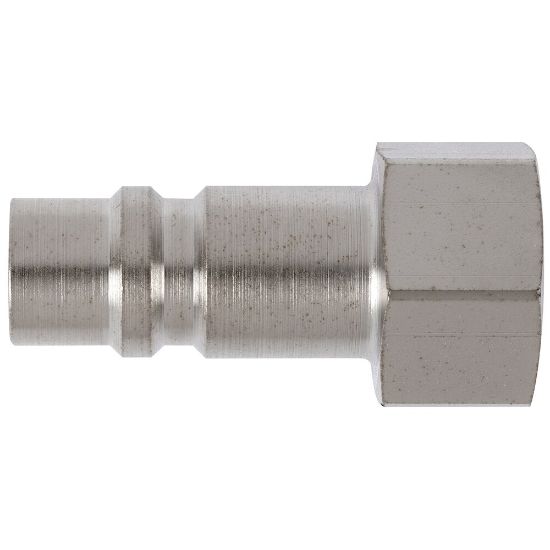

Quick Coupling with ISO 6150 B Profile, Series 37 - 37SFIW21SXN

Name: Quick Coupling with ISO 6150 B Profile, Series 37 - 37SFIW21SXN
SKU: 37SFIW21SXN
Availability: OutOfStock

Quick coupling system with nominal diameter 11 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile and according to US MIL-SPEC 4109. Available made of brass.

Availability:

Backordered

SKU: 37SFIW21SXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Outside Diameter	35 mm	Valve Included	No
Flow Rate	2350 L/min	Hex Size	na
Minimum Operating Temperature	-20 °C	Version	Single Shut-Off
Maximum Operating Pressure	35 bar	Seal Material	na
Diameter	11 nom	Length	24 mm
Material	Steel - nickel plated	Type	Plug
Connection Type	Female Thread - parallel	Connection Thread Size (inch)	1/2
Hose I.D.	na
