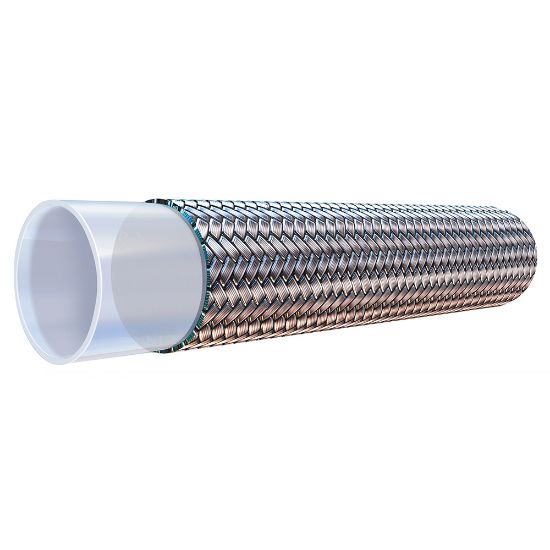

PTFE Hose - 929B - 929-4

PTFE Hose 929B features a heavier wall for improved kink resistance and enhanced resistance to gas permeation over 919/919B hose. Use in a wide temperature range from -100°F to +450°F.

Availability:	Backordered
Partner Available:	5 in stock

SKU: 929-4

Products specifications

Attribute name	Attribute value
Inside Diameter	5 mm	Size	-4
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE)	Vacuum Pressure Rating	28 Inch-Hg
Specifications Met	SAE 100R1, Type 4A	Weight	0.12 kg/m
Minimum Bend Radius	51 mm	Maximum Operating Pressure	3000 psi
Maximum Operating Temperature	232 °C	Division	Parflex Division
Minimum Operating Temperature	-100 °F	Outside Diameter	8.6 mm
Media	Petroleum Hydraulic Fluids	Product Type	PTFE Hose
Design Factor	4:1	Hose Reinforcement Material	Braid of 304 Stainless Steel
Compatible Fitting	91N Series	Application	Chemical Transfer
Cover Material	n/a	Cover Color	Natural
Hose Style	Natural PTFE	Hose I.D. (inch)	3/16
