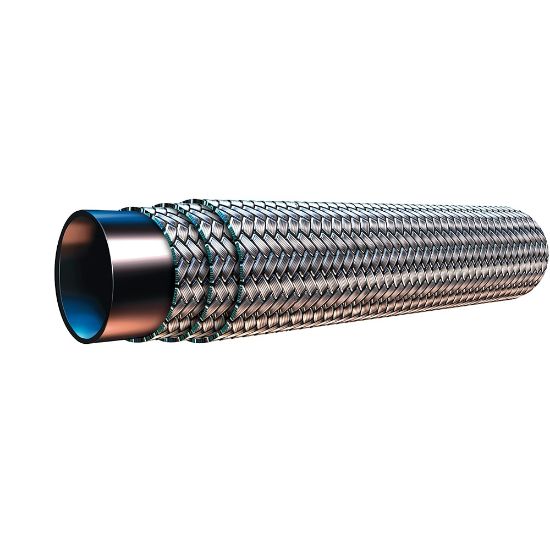

High Pressure PTFE Hose - 955B-8

Name: High Pressure PTFE Hose - 955B-8
SKU: 955B-8
Availability: OutOfStock

PTFE High Pressure Hydraulic Hose Assemblies have exceptional chemical compatibility, resist moisture, and handle pressures up to 5,500 psi. They are designed for high temp hydraulics,chemical transfer, and compressor discharge applications.

Availability:

Backordered

SKU: 955B-8

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	379 bar	Inside Diameter	19 mm
Specifications Met	N/A	Outside Diameter	19.1 mm
Media	Lubricants (Oils)	Size	-8
Maximum Operating Temperature	204 °C	Hose Reinforcement Material	Multiple Braids of Stainless Steel
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE) Static Dissipative	Minimum Operating Temperature	-54 °C
Design Factor	4:1	Weight	0.68 kg/m
Minimum Bend Radius	146 mm	Compatible Fitting	95 Series
Product Style	Static Dissipative	Cover Material	n/a
Application	Foam Mixers
Dash Number	-8	Maximum Working Pressure (psi)	5,500
