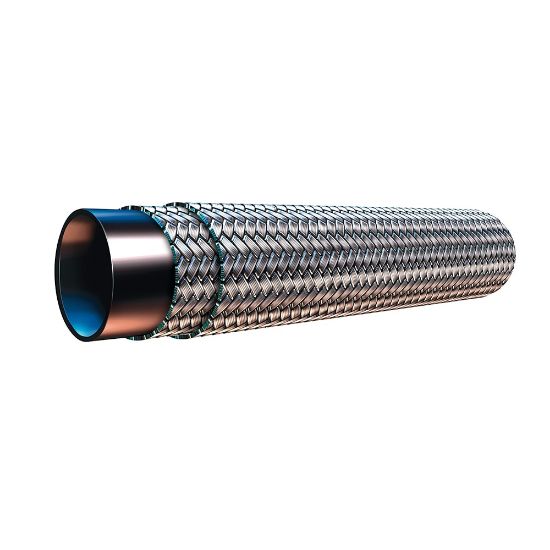

High Pressure PTFE Hose - 944B-10

Name: High Pressure PTFE Hose - 944B-10
SKU: 944B-10
Availability: OutOfStock

PTFE High Pressure Hydraulic Hose Assemblies have exceptional chemical compatibility, resist moisture, and handle pressures up to 5,500 psi. They are designed for high temp hydraulics,chemical transfer, and compressor discharge applications.

Availability:

Backordered

SKU: 944B-10

Qty:

Products specifications

Attribute name	Attribute value
Specifications Met	N/A	Hose Reinforcement Material	Braid of Stainless Steel
Minimum Bend Radius	3-1/4 inch	Inside Diameter	13 mm
Size	-10	Maximum Operating Temperature	204 °C
Compatible Fitting	94 Series	Hose Inner Tube Material	Polytetrafluoroethylene (PTFE) Static Dissipative
Media	Water	Product Style	Static Dissipative
Application	High Temperature Hydraulics	Maximum Operating Pressure	27.6 MPa
Design Factor	4:1	Weight	0.31 lb/ft
Cover Material	n/a	Minimum Operating Temperature	-65 °F
Outside Diameter	18.5 mm
Maximum Working Pressure (psi)	4,000	Dash Number	-10
