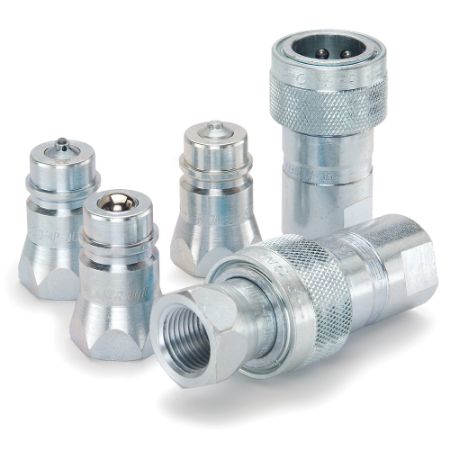

Pioneer Agricultural Manual Connect Quick Couplings, ISO 5675 - 4000 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
4000 Series Couplers (hydraulic) 3000 psi, connect with 4000 Series Nipples and 1/2"" 8010 Series Nipples (ISO 5675, Pioneer male tips).
Parker's 4000 Series are double shut-off quick couplings with poppet or ball valve options. Couplers have a manual sleeve. Push-pull breakaway sleeve is only available on 1/4" body size with 9/16 - 18 ORB thread, part number 4050P-T6.
4000 Series Nipples (hydraulic) 3000 psi, connect with 4000 Series Couplers and 4200 Series Couplers. Nipples are available with a poppet or ball valve.
Technical Characteristics:
• Sizes: 1/4” – 1”
• Material: Steel
• Port Ends: Female NPTF, Female ORB, Male ORB, Female BSPP
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
• Agriculture
• Mobile Equipment
• Construction
• Snow removal
• Industrial
Features/Benefits:
• Proven design for rugged applications
• Poppet or ball valve option
• Critical parts are hardened for durability
• 1/2" size globally connects with Pioneer universal male tips (nipples) complying to ISO 5675
Applications:
• Tractors and agricultural equipment
• Hydraulic loaders
• Add-on hydraulic circuits
• Hydraulic tools
• Snow plow attachments
Read More...Parker's 4000 Series are double shut-off quick couplings with poppet or ball valve options. Couplers have a manual sleeve. Push-pull breakaway sleeve is only available on 1/4" body size with 9/16 - 18 ORB thread, part number 4050P-T6.
4000 Series Nipples (hydraulic) 3000 psi, connect with 4000 Series Couplers and 4200 Series Couplers. Nipples are available with a poppet or ball valve.
Technical Characteristics:
• Sizes: 1/4” – 1”
• Material: Steel
• Port Ends: Female NPTF, Female ORB, Male ORB, Female BSPP
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
• Agriculture
• Mobile Equipment
• Construction
• Snow removal
• Industrial
Features/Benefits:
• Proven design for rugged applications
• Poppet or ball valve option
• Critical parts are hardened for durability
• 1/2" size globally connects with Pioneer universal male tips (nipples) complying to ISO 5675
Applications:
• Tractors and agricultural equipment
• Hydraulic loaders
• Add-on hydraulic circuits
• Hydraulic tools
• Snow plow attachments
| Action | SKU | Availability | Partner Available | Price | Plating Type | Hex Size | Application | Minimum Operating Temperature | Maximum Operating Pressure | Dimensional Weight | Body Material | Maximum Operating Temperature | Flow Rate | Specifications Met | Division | Seal Material | Coupling Half | Connection Type | Product Type | Connection Thread Size (inch) | Valve Type | Body Size (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4010-2P | 4 in stock | 581 in stock | $13.05 | Zinc with clear trivalent chromate | 0.75 inch | Hydraulics | -40 °F | 3000 psi | 0.01999400479616307 lb | Steel | 250 °F | 3 Gal/min | N/A | Quick Coupling Division | Nitrile | Male Nipple | Female NPTF | Manual sleeve | 1/4 - 18 | Poppet | 1/4 | |
| 4010-3P | 23 in stock | 289 in stock | $16.49 | Zinc with clear trivalent chromate | 0.94 inch | Hydraulics | -40 °F | 3000 psi | 0.03998800959232614 lb | Steel | 250 °F | 6 Gal/min | N/A | Quick Coupling Division | Nitrile | Male Nipple | Female NPTF | Manual sleeve | 3/8 - 18 | Poppet | 3/8 | |
| 4010-6P | Backordered | 101 in stock | $55.02 | Zinc with clear trivalent chromate | 1.63 inch | Hydraulics | -40 °F | 3000 psi | 0.11236510791366906 lb | Steel | 250 °F | 50 Gal/min | N/A | Quick Coupling Division | Nitrile | Male Nipple | Female NPTF | Manual sleeve | 1 - 11 1/2 | Poppet | 1 | |
| 4010-T6 | Backordered | 14 in stock | $19.28 | Zinc with clear trivalent chromate | 0.75 inch | Hydraulics | -40 °F | 3000 psi | 0.01999400479616307 lb | Steel | 250 °F | 3 Gal/min | N/A | Quick Coupling Division | Nitrile | Male Nipple | Female ORB | Manual sleeve | 9/16 - 18 | Poppet | 1/4 | |
| 4050-15 | Backordered | 107 in stock | $42.20 | Zinc with clear trivalent chromate | 1.06 inch | Hydraulics | -40 °F | 3000 psi | 0.15995203836930455 lb | Steel | 250 °F | 12 Gal/min | ISO 5675 | Quick Coupling Division | Nitrile | Female Coupler | Female ORB | Manual sleeve | 3/4 - 16 | Ball | 1/2 | |
| 4050-15P | 2 in stock | 232 in stock | $45.05 | Zinc with clear trivalent chromate | 1.06 inch | Hydraulics | -40 °F | 3000 psi | 0.15995203836930455 lb | Steel | 250 °F | 12 Gal/min | ISO 5675 | Quick Coupling Division | Nitrile | Female Coupler | Female ORB | Manual sleeve | 3/4 - 16 | Poppet | 1/2 | |
| 4050-16 | Backordered | 53 in stock | $48.20 | Zinc with clear trivalent chromate | 1.06 inch | General Purpose | -40 °F | 3000 psi | 0.15995203836930455 lb | Steel | 250 °F | 12 Gal/min | ISO 5675 | Quick Coupling Division | Nitrile | Female Coupler | Female ORB | Manual sleeve | 7/8 - 14 | Ball | 1/2 | |
| 4050-16P | Backordered | 5 in stock | $58.49 | Zinc with clear trivalent chromate | 1.06 inch | General Purpose | -40 °F | 3000 psi | 0.12464028776978417 lb | Steel | 250 °F | 12 Gal/min | ISO 5675 | Quick Coupling Division | Nitrile | Female Coupler | Female ORB | Manual sleeve | 7/8 - 14 | Poppet | 1/2 | |
| 4050-2P | Backordered | 264 in stock | $30.72 | Zinc with clear trivalent chromate | 0.88 inch | General Purpose | -40 °F | 3000 psi | 0.03998800959232614 lb | Steel | 250 °F | 3 Gal/min | N/A | Quick Coupling Division | Nitrile | Female Coupler | Female NPTF | Manual sleeve | 1/4 - 18 | Poppet | 1/4 | |
| 4050-2P-T8M | Backordered | Backordered | $40.73 | Zinc with clear trivalent chromate | 0.88 inch | General Purpose | -40 °F | 3000 psi | 0.025786870503597122 lb | Steel | 250 °F | 3 Gal/min | N/A | Quick Coupling Division | Nitrile | Female Coupler | Male ORB | Manual sleeve | 3/4 - 16 | Poppet | 1/4 | |
| 4050-3P | 13 in stock | 202 in stock | $41.06 | Zinc with clear trivalent chromate | 0.94 inch | Hydraulics | -40 °F | 3000 psi | 0.07997601918465227 lb | Steel | 250 °F | 6 Gal/min | N/A | Quick Coupling Division | Nitrile | Female Coupler | Female NPTF | Manual sleeve | 3/8 - 18 | Poppet | 3/8 | |
| 4050-4 | 44 in stock | 727 in stock | $37.11 | Zinc with clear trivalent chromate | 1.06 inch | Hydraulics | -40 °F | 3000 psi | 0.15995203836930455 lb | Steel | 250 °F | 12 Gal/min | ISO 5675 | Quick Coupling Division | Nitrile | Female Coupler | Female NPTF | Manual sleeve | 1/2 - 14 | Ball | 1/2 | |
| 4050-4P | Backordered | 742 in stock | $37.11 | Zinc with clear trivalent chromate | 1.06 inch | Hydraulics | -40 °F | 3000 psi | 0.15995203836930455 lb | Steel | 250 °F | 12 Gal/min | ISO 5675 | Quick Coupling Division | Nitrile | Female Coupler | Female NPTF | Manual sleeve | 1/2 - 14 | Poppet | 1/2 | |
| 4050-5 | Backordered | 101 in stock | $50.77 | Zinc with clear trivalent chromate | 1.13 inch | Hydraulics | -40 °F | 3000 psi | 0.15995203836930455 lb | Steel | 250 °F | 12 Gal/min | ISO 5675 | Quick Coupling Division | Nitrile | Female Coupler | Female NPTF | Manual sleeve | 3/4 - 14 | Ball | 1/2 | |
| 4050-5P | Backordered | 37 in stock | $54.72 | Zinc with clear trivalent chromate | 1.13 inch | General Purpose | -40 °F | 3000 psi | 0.15995203836930455 lb | Steel | 250 °F | 12 Gal/min | ISO 5675 | Quick Coupling Division | Nitrile | Female Coupler | Female NPTF | Manual sleeve | 3/4 - 14 | Poppet | 1/2 | |
| 4050-6P | 5 in stock | 144 in stock | $116.64 | Zinc with clear trivalent chromate | 1.63 inch | General Purpose | -40 °F | 3000 psi | 0.22473021582733813 lb | Steel | 250 °F | 50 Gal/min | N/A | Quick Coupling Division | Nitrile | Female Coupler | Female NPTF | Manual sleeve | 1 - 11 1/2 | Poppet | 1 | |
| 4050-T6 | Backordered | 2 in stock | $36.12 | Zinc with clear trivalent chromate | 0.88 inch | General Purpose | -40 °F | 3000 psi | 0.02670863309352518 lb | Steel | 250 °F | 3 Gal/min | N/A | Quick Coupling Division | Nitrile | Female Coupler | Female ORB | Manual sleeve | 9/16 - 18 | Poppet | 1/4 | |
| 4110-5 | 1 in stock | 188 in stock | $44.62 | Zinc with clear trivalent chromate | 1.31 inch | Hydraulics | -40 °F | 3000 psi | 0.062320143884892085 lb | Steel | 250 °F | 28 Gal/min | N/A | Quick Coupling Division | n/a | Male Nipple | Female NPTF | Manual sleeve | 3/4 - 14 | Ball | 3/4 |
