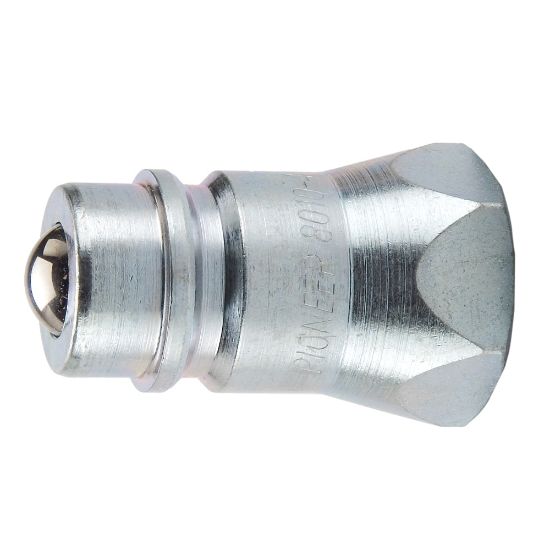

Pioneer Agricultural Manual Connect Quick Couplings, ISO 5675 - 4000 Series - 4110-5

Parker's agricultural quick couplers and nipples are the farmers choice where fluid lines require fast and easy connection and disconnection.

Availability:	1 in stock
Partner Available:	188 in stock

SKU: 4110-5

$44.62

Products specifications

Attribute name	Attribute value
Plating Type	Zinc with clear trivalent chromate	Application	Hydraulics
Division	Quick Coupling Division	Flow Rate	28 Gal/min
Dimensional Weight	0.062320143884892085 lb	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Maximum Operating Pressure	3000 psi
Specifications Met	N/A	Seal Material	n/a
Body Material	Steel	Hex Size	1.31 inch
Valve Type	Ball	Connection Thread Size (inch)	3/4 - 14
Body Size (inch)	3/4	Product Type	Manual sleeve
Coupling Half	Male Nipple	Connection Type	Female NPTF

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
