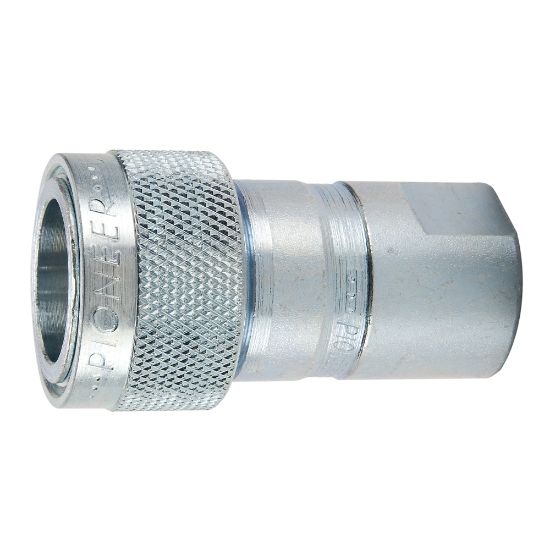

Pioneer Agricultural Manual Connect Quick Couplings, ISO 5675 - 4000 Series - 4050-16P

Parker's agricultural quick couplers and nipples are the farmers choice where fluid lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	5 in stock

SKU: 4050-16P

$58.49

Products specifications

Attribute name	Attribute value
Plating Type	Zinc with clear trivalent chromate	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Maximum Operating Pressure	3000 psi
Hex Size	1.06 inch	Minimum Operating Temperature	-40 °F
Application	General Purpose	Flow Rate	12 Gal/min
Body Material	Steel	Specifications Met	ISO 5675
Seal Material	Nitrile	Dimensional Weight	0.12464028776978417 lb
Connection Type	Female ORB	Connection Thread Size (inch)	7/8 - 14
Body Size (inch)	1/2	Product Type	Manual sleeve
Valve Type	Poppet	Coupling Half	Female Coupler

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
