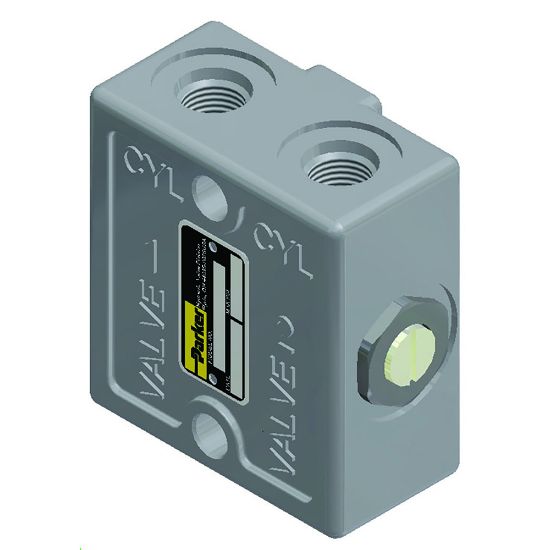

Pilot Operated Check Valves – LO, LOA Series - LOA-38-D

Name: Pilot Operated Check Valves – LO, LOA Series - LOA-38-D
SKU: LOA-38-D
Availability: OutOfStock

Parker’s LO & LOA are Pilot Operated Check Valves that are designed to lock a cylinder, or part of a circuit, without leakage while a control valve is in the neutral position.

Availability:

Backordered

SKU: LOA-38-D

Qty:

Products specifications

Attribute name	Attribute value
Weight	2.75 lb	Product Style	Piolt Operated Check Valve
Seal Material	n/a	Connection Type	NPT
Options	Double PO Check	Maximum Operating Pressure	2000 psi
Minimum Operating Temperature	-40 °F	Flow Direction	n/a
Maximum Flow Rate	8 Gal/min	Configuration	n/a
Division	Hydraulic Valve Systems Division	Actuation Type	Hydraulic Pressure
Mounting Type	In-Line	Maximum Operating Temperature	+200 °F
Body Material	High Strength Cast Iron	Connection Size	3/8"
Valve Option	Double	Port Size	3/8" NPT
Flow Rate (gpm)	8

Product resources

Literature and Reference Materials
