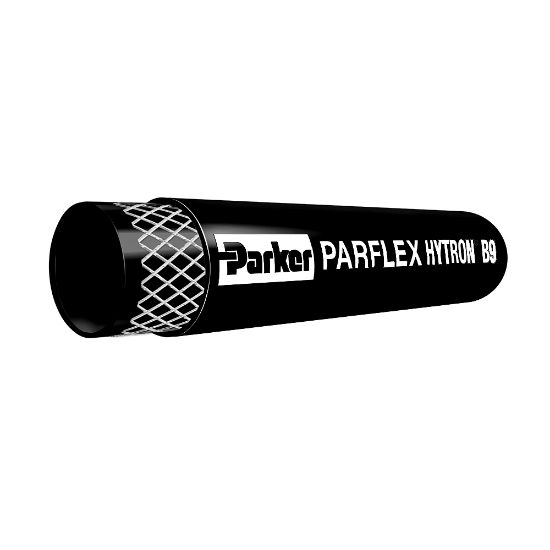

OBSOLETE: Transfer Hose - B9 - B910BK

Name: OBSOLETE: Transfer Hose - B9 - B910BK
SKU: B910BK
Availability: OutOfStock

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:

Backordered

SKU: B910BK

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	93 °C	Maximum Operating Pressure	17 bar
Hose Reinforcement Material	Fiber	Specifications Met	N/A
Media	Lubricants (Oils)	Application	Pneumatics
Size	-10	Division	Parflex Division
Minimum Operating Temperature	-40 °F	Weight	0.30 kg/m
Compatible Fitting	56 Series	Outside Diameter	23.4 mm
Minimum Bend Radius	102 mm	Design Factor	4:1
Vacuum Pressure Rating	711.2 mm-Hg	Hose Inner Tube Material	Specially Formulated Polyurethane
Inside Diameter	5/8 inch	Cover Material	Polyurethane Specially Formulated
Hose I.D. (inch)	0.625	Color	BLACK
