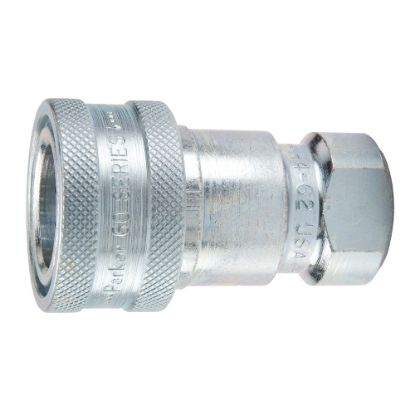

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - H4-63

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	96 in stock
Partner Available:	1471 in stock

SKU: H4-63

$23.33

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Specifications Met	ISO 7241-1 Series B
Vacuum Pressure Rating	-0.9 bar	Plating Type	Zinc with clear trivalent chromate
Hex Size	1.12 inch	Maximum Operating Temperature	121 °C
Dimensional Weight	0.03998800959232614 lb	Flow Rate	12 Gal/min
Valve Type	Poppet	Minimum Operating Temperature	-40 °F
Valve Material	Steel	Product Type	Manual Connect
Connection Type	Female NPTF	Seal Material	Nitrile
Coupling Half	Male Nipple	Body Size (inch)	1/2
Body Material	Steel	Maximum Operating Pressure	4000
Application	General Purpose	Connection Thread Size (inch)	1/2 - 14
