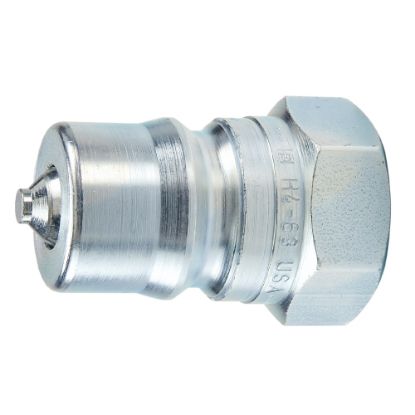

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - H4-62

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	135 in stock
Partner Available:	1122 in stock

SKU: H4-62

$52.48

Products specifications

Attribute name	Attribute value
Plating Type	Zinc with clear trivalent chromate	Hex Size	1.12 inch
Ball Material	Steel	Valve Material	Steel
Dimensional Weight	0.15995203836930455 lb	Minimum Operating Temperature	-40 °F
Valve Type	Poppet	Specifications Met	ISO 7241-1 Series B
Division	Quick Coupling Division	Vacuum Pressure Rating	27.4 Inch-Hg
Product Type	Manual Connect	Maximum Operating Temperature	121 °C
Flow Rate	45 L/min
Maximum Operating Pressure	4000	Body Material	Steel
Coupling Half	Female Coupler	Body Size (inch)	1/2
Connection Type	Female NPTF	Connection Thread Size (inch)	1/2 - 14
Application	General Purpose	Seal Material	Nitrile
