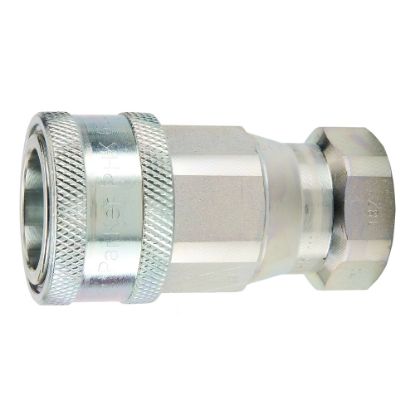

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Multi-Purpose Hydraulic Quick Couplings, ISO 7241 series A Interchange - 6600 Series - 6610-10-10

Parker's hydraulic quick couplers and nipples are ideal for use in applications where fluid lines require fast and easy connection and disconnection.

Availability:	2 in stock
Partner Available:	68 in stock

SKU: 6610-10-10

$31.56

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Body Material	Steel
Seal Material	Nitrile	Division	Quick Coupling Division
Hex Size	1.12 inch	Maximum Operating Temperature	250 °F
Product Type	Manual Connect	Plating Type	Zinc with clear trivalent chromate
Application	Hydraulics	Valve Type	Poppet
Dimensional Weight	0.02670863309352518 lb	Maximum Operating Pressure	4000 psi
Flow Rate	12 Gal/min	Interchange Type	ISO 7241-1 Series A
Specifications Met	ISO 7241-1 Series A
Body Size (inch)	1/2	Coupling Half	Male Nipple
Connection Type	Female ORB	Connection Thread Size (inch)	7/8 - 14
