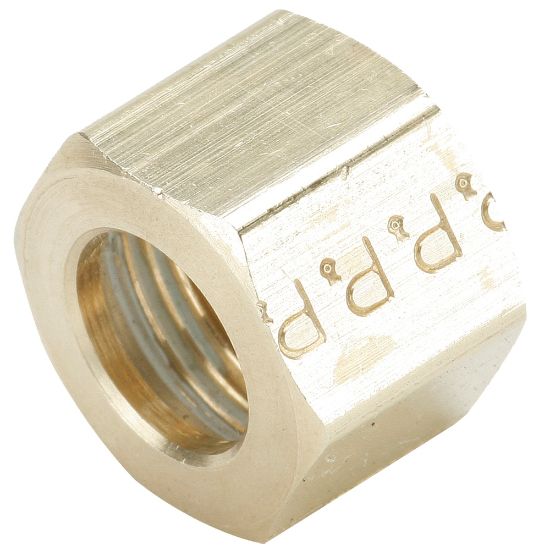

Inch Brass Compression Fittings - 61C-10

Parker's compression fittings require no flaring, soldering or other preparation of tubing necessary to assemble. Offered in both forgings and extrusions compression fittings meet functional requirements of SAE J-512

Availability:	Backordered
Partner Available:	264 in stock

SKU: 61C-10

$5.30

Products specifications

Attribute name	Attribute value
Specifications Met	SAE J-512	Tube Material	Copper, Aluminum, Thermoplastic
Maximum Operating Temperature	121 °C	Maximum Operating Pressure	650 psi
Division	Fluid System Connectors Division	Dimensional Weight	0.1104 lb
Application	Compressors, Machine Tools, Engine, Pumps, Purification	Weight	na
Sleeve Material	Brass, Acetal	Quantity per Box	na
Nut Material	BRASS	Minimum Operating Temperature	-54 °C
Media	Water, air, inert and non-combustible gasses
Connection 1 Size	5/8"	Connection 1 Type	Compression
Product Style	Nut	Body Material	Brass, Forged
