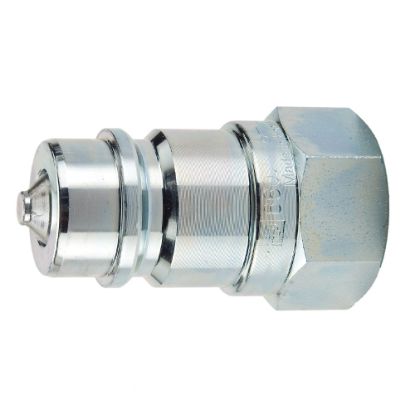

Multi-Purpose Hydraulic Quick Couplings, ISO 7241 series A Interchange - 6600 Series - 6608-10-10

Parker's hydraulic quick couplers and nipples are ideal for use in applications where fluid lines require fast and easy connection and disconnection.

Availability:	3 in stock
Partner Available:	80 in stock

SKU: 6608-10-10

$50.32

Products specifications

Attribute name	Attribute value
Dimensional Weight	0.12464028776978417 lb	Minimum Operating Temperature	-40 °F
Body Material	Steel	Seal Material	Nitrile
Division	Quick Coupling Division	Hex Size	1.25 inch
Maximum Operating Temperature	250 °F	Product Type	Manual Connect
Plating Type	Zinc with clear trivalent chromate	Application	Hydraulics
Valve Type	Poppet	Maximum Operating Pressure	4000 psi
Flow Rate	12 Gal/min	Interchange Type	ISO 7241-1 Series A
Specifications Met	ISO 7241-1 Series A
Coupling Half	Female Coupler	Connection Type	Female ORB
Connection Thread Size (inch)	7/8 - 14	Body Size (inch)	1/2"
