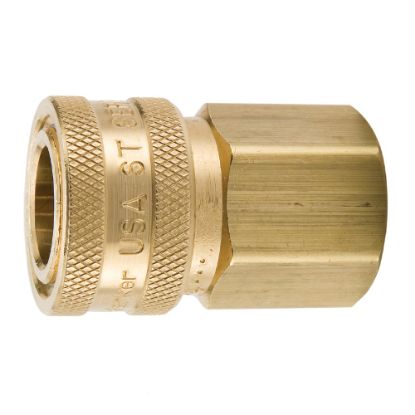

High Flow, Unvalved, Hydraulic Quick Couplings - ST Series - BST-1M

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Availability:	1 in stock
Partner Available:	402 in stock

SKU: BST-1M

$15.03

Products specifications

Attribute name	Attribute value
Flow Rate	3 Gal/min	Maximum Operating Temperature	250 °F
Valve Type	Unvalved	Application	High Flow
Minimum Operating Temperature	-40 °F	Dimensional Weight	0.013329336530775381 lb
Division	Quick Coupling Division	Hex Size	0.56 inch
Seal Material	Nitrile	Product Type	Push to Connect
Maximum Operating Pressure	2500	Body Material	BRASS
Body Size (inch)	1/8	Connection Type	Male NPTF
Coupling Half	Female Coupler	Connection Thread Size (inch)	1/8 - 27
