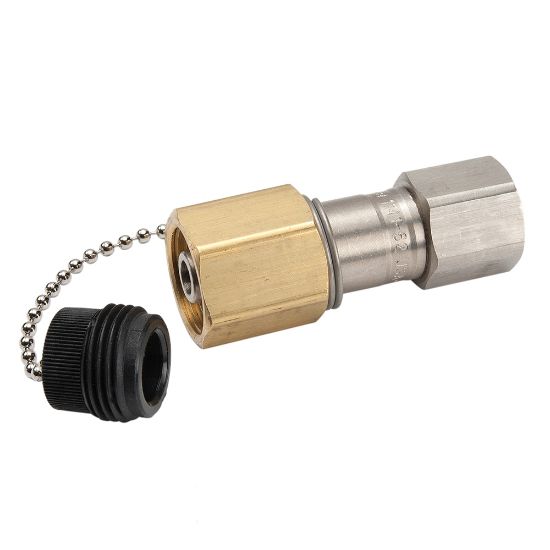

Connect Under Pressure Stainless Quick Couplings - 1141 Series - 1141-62

Parker's high pressure, connect under pressure 1/4" quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.

Availability:	118 in stock
Partner Available:	59 in stock

SKU: 1141-62

$115.15

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Maximum Operating Pressure	10000 psi
Application	High Pressure Hydraulics	Product Type	Thread to Connect
Maximum Operating Temperature	180 °F	Minimum Operating Temperature	-30 °F
Maximum Flow Rate	3 Gal/min	Body Material	Stainless Steel 303 with Brass Sleeve
Hex Size	0.88	Connection Type	Female NPTF
Body Size	1/4 inch	Valve Type	Poppet
Seal Material	Polyurethane	Connection Thread Size	1/4"-18 inch
Coupling Half	Female Coupler
