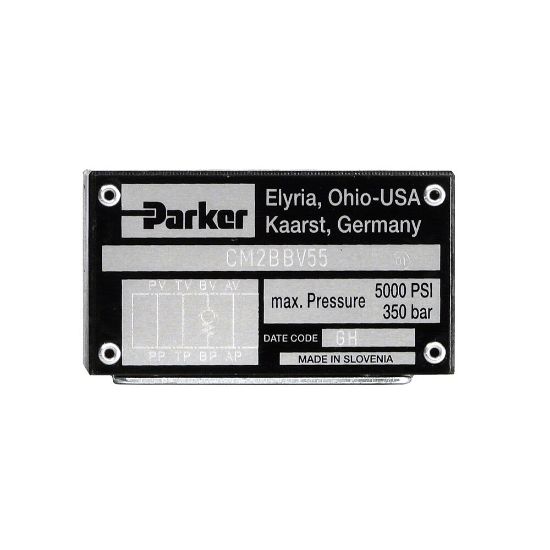

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Direct Operated Check Valve - Series CM - CM2PPV

Parker direct operated check valves series CM in sandwich design are predestined for an easy configuration of stack systems. A large number of options offer a multitude of uses for hydraulic switching.

Availability:	Backordered
Partner Available:	4 in stock

SKU: CM2PPV

$292.51

Products specifications

Attribute name	Attribute value
Division	Industrial Systems Division Europe	Maximum Operating Temperature	60 °C
Minimum Operating Temperature	-20 °C	Body Material	Steel
Maximum Operating Pressure	350 bar	Seal Material	FPM
Brand	Parker	Technology	Hydraulics
Product Series	Check Valve	Connection Size	n/a
For Fluid Type	Hydraulic Oil According to DIN 51524	Mounting Position	Unrestricted
Cracking Pressure	0.3 bar	Application	Industrial Hydraulic
Actuation Type	Mechanical	Media	Hydraulic Oil
Maximum Kinematic Viscosity	400 cSt	Minimum Ambient Temperature	-20 °C
Connection Type	n/a	Weight	0.9 kg
Mounting Type	Sandwich Plate	Filter Efficiency Rating	ISO 4406 18/16/13
Minimum Kinematic Viscosity	20 cSt	Maximum Flow Rate	53 L/min
Flow Direction	Directional Valve to Manifold	Maximum Ambient Temperature	70 °C
Configuration	Check Valve in Port P
Port Connection	NG06 / CETOP 03	Maximum Flow Rate	53 L/MIN
Function	From manifold to directional valve, check valve in channel P
