Crimp Style Hydraulic Hose Fitting - 43 Series Fittings - 10643-10-10

Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.

Availability:	252 in stock
Partner Available:	3054 in stock

SKU: 10643-10-10

$18.06

Products specifications

Attribute name	Attribute value
Shape	Straight	Materials of Construction	Steel
Division	Hose Products Division	Nut Hex Size	25.40 mm
Connection Size	7/8"-14 inch Thread	Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u
Product Style	Female JIC 37° - Swivel	Banjo Port Diameter	n/a
Hose Inside Diameter	5/8 inch	Flange Size	n/a
Back-Up Hex Size	23.81 mm	Port Size	5/8 inch
Shape	Straight	Hose I.D. (size)	-10
Port Connection	5/8"	Product Style	Female JIC 37° - Swivel
Hex Type	Inch	Materials of Construction	Steel

Customers who bought this item also bought

Crimp Style Hydraulic Hose Fitting - 43 Series Fittings - 13743-10-10

Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.

$33.59

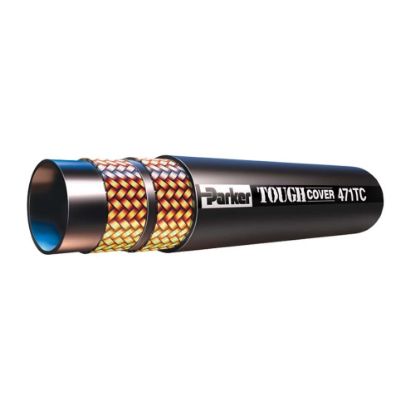

Hydraulic Industry Standard Hose 2500-5800 PSI – 471 Hose - 471TC-10
