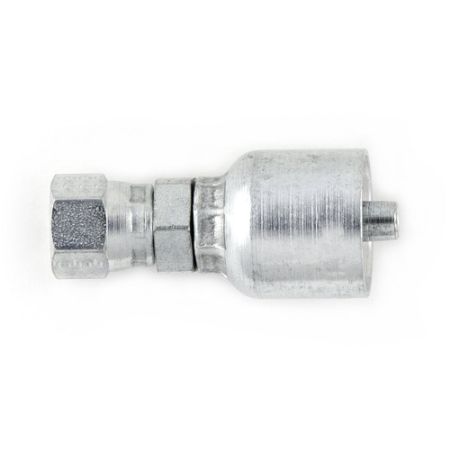

Crimp Style Hydraulic Hose Fitting - 43 Series Fittings

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

The 43 Series of hydraulic hose fittings from Parker Hannifin is renowned for its ease of assembly, wide selection of shape and end formations, hose compatibility, and extensive use across markets. This cost-effective line of permanent crimp-style hydraulic fittings is designed for use with Parkcrimp crimpers to deliver “bite-the-wire” sealing and holding power. When used with Parker’s No-Skive hoses, 43 Series fittings can be assembled without removing the outer hose cover, eliminating premature hose failure caused by skiving too long or too short.

43 Series fittings feature one-piece construction with chromium-6-free plating, and are compatible with petroleum-based hydraulic fluids and lubricating oils and with phosphate-ester-based hydraulic fluids. Applications include hydraulic industry standard, constant working pressure, high temperature, low temperature, suction and return. Available in sizes from ¼-inch to 2 inches in a wide variety of end formations, the 43 Series is offered in more than 2,500 configurations and is available around the world. For highly corrosive applications, 43 Series fittings also are available in stainless steel.

Markets:
• Transportation
• RV & Bus
• Military
• Construction
• Agriculture
• Grounds & Building Maintenance
• Forestry
• Railroad
• Utility Equipment
• Personnel Lift Equipment
• Machine Tool
• Oil Field Service
• Waste & Refuse
• Material Handling
• Marine
• Paving & Road Maintenance
• Ground Support Equipment
• Industrial
• Mining

Features/Benefits:
• Easy push on force
• Imperial HEX
• Stainless steel option available
• Wide range of end configurations
• One piece reduces complexity and leakage path
• No-Skive technology offers easy, efficient, and safe production processes

Applications:
• Petroleum base hydraulic fluids and lubricating oils
• Phosphate-ester base hydraulic fluids

Compatible Hoses:
• 301LT
• 302
• 304
• 351TC, 351ST
• 387/TC/ST (-4 through -20 only)
• 422
• 424
• 426
• 431
• 436
• 451TC, 451ST
• 471TC, 471ST
• 472TC
• 482TC, 482ST
• 487/TC/ST (-4 through -16 only)
• 722/TC/ST
• 787/TC/ST (-4 and -6 only)
• 797/TC/ST (-4 and -6 only)
• 881
• GST II Series 7092

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	Division	Flange Size	Shape	Disclaimer	Product Style	Back-Up Hex Size	Banjo Port Diameter	Materials of Construction	Connection Size	Port Size	Hose Inside Diameter	Nut Hex Size	Shape	Product Style	Materials of Construction	Port Connection	Hose I.D. (size)	Hex Type
10143-12-10	23 in stock	373 in stock	$18.15	Hose Products Division	n/a	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Male NPTF Pipe - Rigid	n/a	n/a	Steel	3/4"-14 inch Thread	3/4 inch	-10 (Size)	1-1/16 inch	Straight	Male NPTF Pipe - Rigid	Steel	3/4"	-10	Inch
10143-12-12	313 in stock	3595 in stock	$13.06	Hose Products Division	n/a	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Male NPTF Pipe - Rigid	n/a	n/a	Steel	3/4"-14 inch Thread	3/4 inch	-12 (Size)	1-1/16 inch	Straight	Male NPTF Pipe - Rigid	Steel	3/4"	-12	Inch
10143-12-12C	9 in stock	44 in stock	$125.98	Hose Products Division	n/a	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Male NPTF Pipe - Rigid	n/a	n/a	Stainless Steel	3/4"-14 inch Thread	3/4 inch	3/4 inch	1-1/16 inch	Straight	Male NPTF Pipe - Rigid	Stainless Steel	3/4"	-12	Inch
10143-12-16	21 in stock	298 in stock	$31.88	Hose Products Division	n/a	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Male NPTF Pipe - Rigid	n/a	n/a	Steel	3/4"-14 inch Thread	3/4 inch	1 inch	1-3/8 inch	Straight	Male NPTF Pipe - Rigid	Steel	3/4"	-16	Inch
10143-12-8	60 in stock	636 in stock	$12.78	Hose Products Division	n/a	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Male NPTF Pipe - Rigid	n/a	n/a	Steel	3/4"-14 inch Thread	3/4 inch	-8 (Size)	1-1/16 inch	Straight	Male NPTF Pipe - Rigid	Steel	3/4"	-8	Inch
10143-16-12	52 in stock	559 in stock	$20.84	Hose Products Division	n/a	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Male NPTF Pipe - Rigid	n/a	n/a	Steel	1"-11-1/2 inch Thread	1 inch	-12 (Size)	1-3/8 inch	Straight	Male NPTF Pipe - Rigid	Steel	1"	-12	Inch
10143-16-16	225 in stock	2804 in stock	$28.38	Hose Products Division	n/a	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Male NPTF Pipe - Rigid	n/a	n/a	Steel	1"-11-1/2 inch Thread	1 inch	-16 (Size)	1-3/8 inch	Straight	Male NPTF Pipe - Rigid	Steel	1"	-16	Inch
10143-16-16C	14 in stock	49 in stock	$210.53	Hose Products Division	n/a	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Male NPTF Pipe - Rigid	n/a	n/a	Stainless Steel	1"-11-1/2	1 inch	1 inch	1-3/8 inch	Straight	Male NPTF Pipe - Rigid	Stainless Steel	1"	-16	Inch
10143-20-20	95 in stock	582 in stock	$48.02	Hose Products Division	n/a	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Male NPTF Pipe - Rigid	n/a	n/a	Steel	1-1/4"-11-1/2 inch Thread	1-1/4 inch	1-1/4 inch	1-3/4 inch	Straight	Male NPTF Pipe - Rigid	Steel	1-1/4"	-20	Inch
10143-20-20C	Backordered	Backordered	$239.30	Hose Products Division	n/a	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Male NPTF Pipe - Rigid	n/a	n/a	Stainless Steel	1-1/4"-11-1/2 inch Thread	1-1/4 inch	-20 (Size)	1-3/4 inch	Straight	Male NPTF Pipe - Rigid	Stainless Steel	1-1/4"	-20	Inch
10143-2-4	197 in stock	3177 in stock	$5.76	Hose Products Division	n/a	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Male NPTF Pipe - Rigid	n/a	n/a	Steel	1/8"-27 inch Thread	1/8 inch	1/4 inch	n/a	Straight	Male NPTF Pipe - Rigid	Steel	1/8"	-4	Inch
10143-24-24	60 in stock	557 in stock	$70.58	Hose Products Division	n/a	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Male NPTF Pipe - Rigid	n/a	n/a	Steel	1-1/2"-11-1/2 inch Thread	1-1/2 inch	-24 (Size)	2 inch	Straight	Male NPTF Pipe - Rigid	Steel	1-1/2"	-24	Inch
10143-24-24C	Backordered	10 in stock	$272.57	Hose Products Division	n/a	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Male NPTF Pipe - Rigid	n/a	n/a	Stainless Steel	1-1/2"-11-1/2 inch Thread	1-1/2 inch	-24 (Size)	n/a	Straight	Male NPTF Pipe - Rigid	Stainless Steel	1-1/2"	-24	Inch
10143-32-32	37 in stock	216 in stock	$116.91	Hose Products Division	n/a	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Male NPTF Pipe - Rigid	n/a	n/a	Steel	2"-11-1/2 inch Thread	2 inch	-32 (Size)	2-1/2 inch	Straight	Male NPTF Pipe - Rigid	Steel	2"	-32	Inch
10143-32-32C	Backordered	Backordered	$459.55	Hose Products Division	n/a	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Male NPTF Pipe - Rigid	n/a	n/a	Stainless Steel	2"-11-1/2 inch Thread	2 inch	2 inch	n/a	Straight	Male NPTF Pipe - Rigid	Stainless Steel	2"	-32	Inch
10143-4-4	1285 in stock	5795 in stock	$6.05	Hose Products Division	n/a	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Male NPTF Pipe - Rigid	n/a	n/a	Steel	1/4"-18 inch Thread	1/4 inch	1/4 inch	9/16 inch	Straight	Male NPTF Pipe - Rigid	Steel	1/4"	-4	Inch
10143-4-4C	113 in stock	21 in stock	$60.72	Hose Products Division	n/a	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Male NPTF Pipe - Rigid	n/a	n/a	Stainless Steel	1/4"-18 inch Thread	1/4 inch	-4 (Size)	9/16 inch	Straight	Male NPTF Pipe - Rigid	Stainless Steel	1/4"	-4	Inch
10143-4-5	3 in stock	52 in stock	$8.92	Hose Products Division	n/a	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Male NPTF Pipe - Rigid	n/a	n/a	Steel	1/4"-18 inch Thread	1/4 inch	5/16 inch	n/a	Straight	Male NPTF Pipe - Rigid	Steel	1/4"	-5	Inch
10143-4-6	171 in stock	2140 in stock	$6.55	Hose Products Division	n/a	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Male NPTF Pipe - Rigid	n/a	n/a	Steel	1/4"-18 inch Thread	1/4 inch	3/8 inch	3/4 inch	Straight	Male NPTF Pipe - Rigid	Steel	1/4"	-6	Inch
10143-6-10	1 in stock	68 in stock	$26.01	Hose Products Division	n/a	Straight	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Male NPTF Pipe - Rigid	n/a	n/a	Steel	3/8"-18 inch Thread	3/8 inch	5/8 inch	n/a	Straight	Male NPTF Pipe - Rigid	Steel	3/8"	-10	Inch
