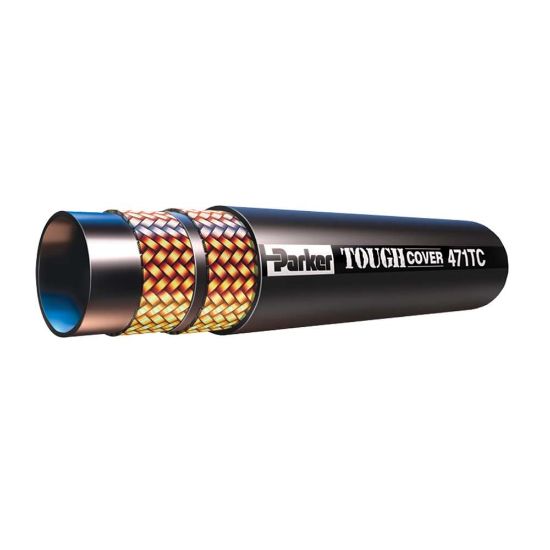

Hydraulic Industry Standard Hose 2500-5800 PSI – 471 Hose - 471TC-10

Parker's 471 hose is a hydraulic industry standard hose that has a pressure range of 2500-5800 PSI, with a synthetic rubber inner tube which provides wide fluid compatibility.

Availability:	526 in stock
Partner Available:	4083 in stock

SKU: 471TC-10

$10.49

Products specifications

Attribute name	Attribute value
Compatible Fitting	43 Series	Hose Inner Tube Material	Synthetic Rubber
Maximum Operating Pressure	3625 psi	Specifications Met	DNV
Application	Petroleum Base Hydraulic Fluids	Nominal Hose Inside Diameter	16 mm
Minimum Operating Temperature	-40 °C	Division	Hose Products Division
Cover Material	Synthetic Rubber Abrasion Resistant	Inside Diameter	16 mm
Outside Diameter	24 mm	Vacuum Pressure Rating	95 kPa
Media	Lubricants	Minimum Bend Radius	100 mm
Weight	0.66 kg/m	Maximum Operating Temperature	100 °C
Hose Reinforcement Material	2 Braids of Steel Wire
Hose I.D. (size)	-10	Hose Cover Type	Tough Cover
