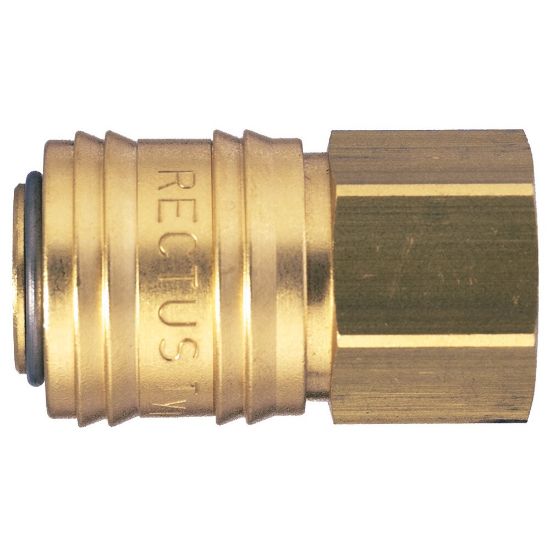

Basic Quick Coupling with ISO 6150 B Profile, Series 24 - 24KAIW17MPN

Name: Basic Quick Coupling with ISO 6150 B Profile, Series 24 - 24KAIW17MPN
SKU: 24KAIW17MPN
Availability: OutOfStock

Basic quick coupling system with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile. Available made of brass/steel.

Availability:

Backordered

SKU: 24KAIW17MPN

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-20 °C	Version	Single Shut-Off
Length	43 mm	Flow Rate	550 L/min
Valve Included	Yes	Outside Diameter	25 mm
Seal Material	NBR	Diameter	5,5 nom
Hex Size	22 mm	Maximum Operating Temperature	100 °C
Division	Low Pressure Connectors Europe Division	Maximum Operating Pressure	35 bar
Hose I.D.	na	Material	Brass nickel plated
Type	Coupling	Connection Thread Size (inch)	3/8
Connection Type	Female Thread - parallel
