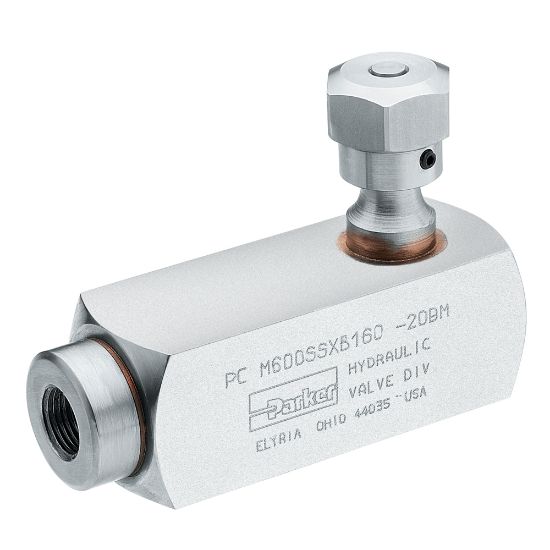

Colorflow In-Line Pressure Compensated Valve - PC*M Series - 9PCM800SS

Name: Colorflow In-Line Pressure Compensated Valve - PC*M Series - 9PCM800SS
SKU: 9PCM800SS
Availability: OutOfStock

Parker’s Colorflow PC*M series in-line pressure compensated valves regulate flow at a selected rate within 5% regardless of fluctuations in inlet and outlet flow. This hydraulic flow control valve can be used within a variety of applications.

Availability:

Backordered

SKU: 9PCM800SS

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Maximum Pressure Setting	n/a
Actuation Type	Hydraulic Pressure	Mounting Type	Inline
Seal Material	Nitrile	Maximum Operating Pressure	3000 psi
Body Material	Stainless Steel	Division	Hydraulic Valve Systems Division
Maximum Flow Rate	15 Gal/min	Media	Oil
Connection Size	1/2	Connection Type	Female to Female
Brand	Colorflow	Function	Pressure Compensated Flow Control
Configuration	Female to Female	Maximum Operating Temperature	-250 °F
Knob Style	Standard Knob	Reverse Check	Without Check
Connection Type	BSPP	Connection Size	1/2"
Mounting Type	In-line	Maximum Flow Rate	15
Maximum Operating Pressure	3000 PSI

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Hydraulic Valve Division Safety Guide
