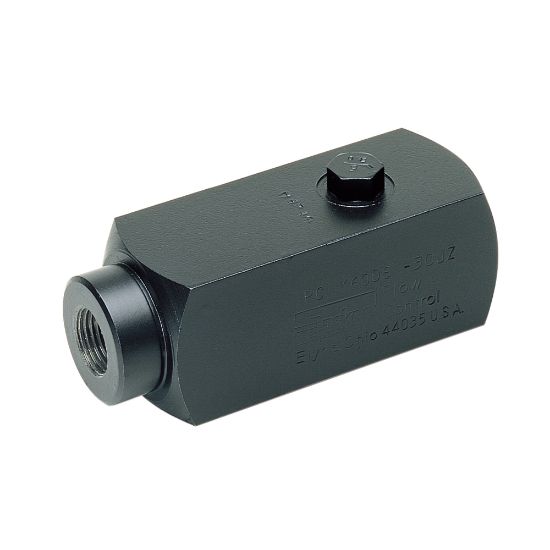

Colorflow In-Line Pressure Compensated Valve - PC*K Series - PCK600S-1.00-V

Name: Colorflow In-Line Pressure Compensated Valve - PC*K Series - PCK600S-1.00-V
SKU: PCK600S-1.00-V
Availability: OutOfStock

Parker’s Colorflow PC*K series in-line hydraulic valve is a pressure compensated flow control valve that regulates flow at a selected rate within 5% regardless of fluctuations in inlet and outlet flow.

Availability:

Backordered

SKU: PCK600S-1.00-V

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40° °F	Flow Rate	n/a
Configuration	Female-Female	Maximum Pressure Setting	n/a
Media	Oil	Maximum Operating Pressure	3000 psi
Mounting Type	Inline	Reverse Check	Without Check
Minimum Flow Rate	0.6	Division	Hydraulic Valve Systems Division
Body Material	Steel	Actuation Type	Hydraulic
Function	Pressure Compensated Flow Control	Brand	Colorflow
Seal Material	Fluorocarbon	Maximum Flow Rate	6 Gal/min
Connection Size	3/8 inch	Maximum Operating Temperature	+250 °F
Connection Type	NPT
Connection Type	NPT	Minimum Flow Rate	0.6
Maximum Operating Pressure	3000	Maximum Flow Rate	6
Reverse Check	Without Check	Connection Size	3/8"
