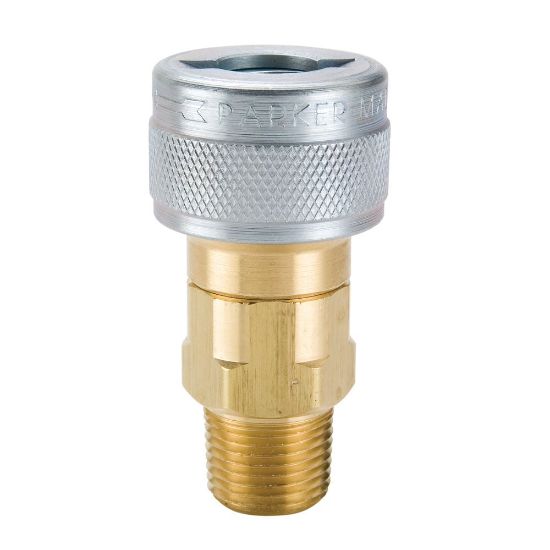

Twist Lock Schrader Interchange, Quick Connect Air Couplings - TL Series - TL-501-8MP

Parker's twist lock interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	12 in stock

SKU: TL-501-8MP

$116.21

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Application	Pneumatic
Interchange Type	Schrader Twist Lock	Product Type	Push to Connect
Maximum Operating Pressure	300 psi	Maximum Operating Temperature	250 °F
Plating Type	Zinc with clear trivalent chromate plating on steel sleeve	Minimum Operating Temperature	-40 °F
Hex Size	1.13 inch	Division	Quick Coupling Division
Body Material	BRASS
Body Size (inch)	1/2	Hose I.D. (inch)	na
Connection Thread Size (inch)	1/2 - 14	Valve Type	Tubular
Connection Type	Male NPTF	Coupling Half	Female Coupler
