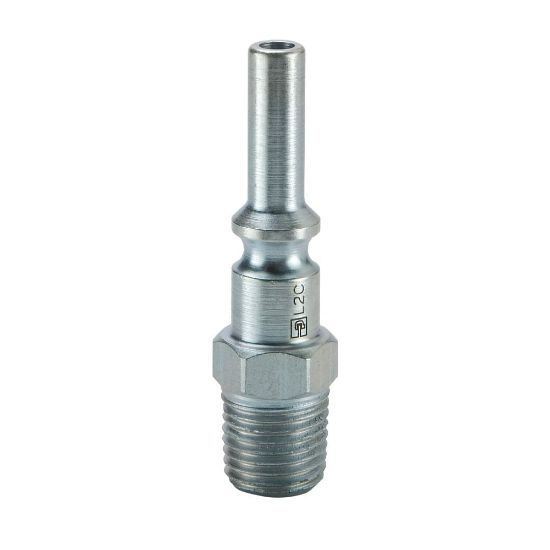

Lincoln Long Stem Interchange, Air Hose and Tool Quick Connect Couplings, - 70 Series - L2C

Parker's general purpose, Lincoln Long Stem Interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	370 in stock

SKU: L2C

$5.87

Qty:

Products specifications

Attribute name	Attribute value
Body Material	Steel	Vacuum Pressure Rating	No
Body Size	1/4 inch	Minimum Operating Temperature	-40 °F
Application	Low Pressure Fluids	Product Type	Manual Connect
Maximum Operating Temperature	250 °F	Division	Quick Coupling Division
Valve Type	Unvalved	Interchange Type	Lincoln Interchange
Maximum Operating Pressure	300 psi	Dimensional Weight	0.01335431654676259 lb
Hex Size	0.56 inch	Connection Thread Size	1/4 - 18 inch
Coupling Half	Male Nipple	Connection Type	Male NPTF

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
