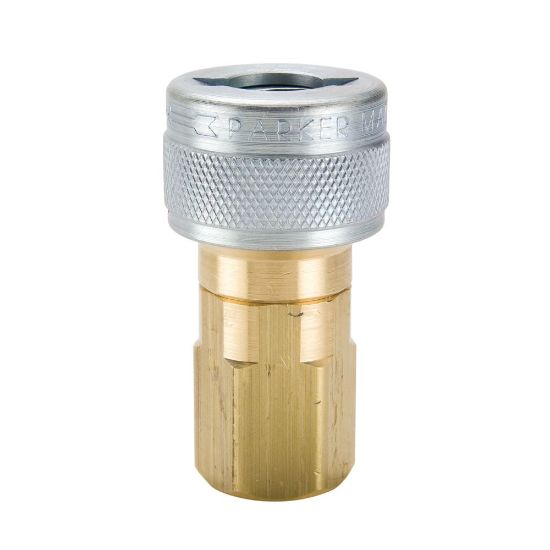

Twist Lock Schrader Interchange, Quick Connect Air Couplings - TL Series - TL-251-4FP

Parker's twist lock interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	4 in stock
Partner Available:	212 in stock

SKU: TL-251-4FP

$27.73

Products specifications

Attribute name	Attribute value
Interchange Type	Schrader Twist Lock	Seal Material	Nitrile
Application	Pneumatic	Maximum Operating Pressure	300 psi
Product Type	Push to Connect	Dimensional Weight	0.03998800959232614 lb
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Plating Type	Zinc with clear trivalent chromate plating on steel sleeve	Hex Size	0.75 inch
Division	Quick Coupling Division	Body Material	BRASS
Body Size (inch)	1/4	Hose I.D. (inch)	na
Connection Type	Female NPTF	Connection Thread Size (inch)	1/4 - 18
Valve Type	Tubular	Coupling Half	Female Coupler

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
