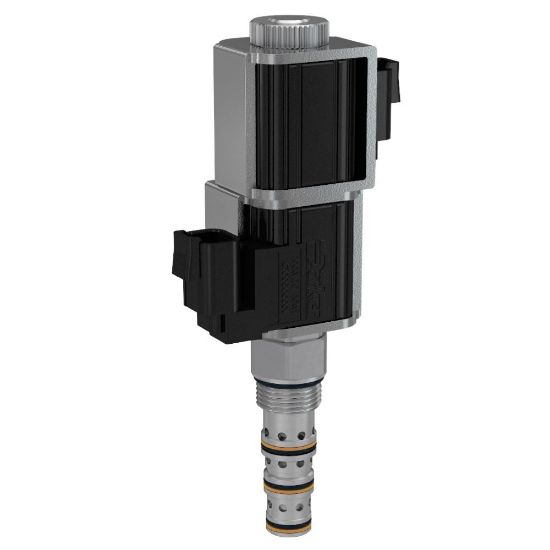

4 Way 3 Position Spool Type Solenoid Valve - GS045460ND

Name: 4 Way 3 Position Spool Type Solenoid Valve - GS045460ND
SKU: GS045460ND
Availability: OutOfStock

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:

Backordered

SKU: GS045460ND

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	350 bar	Seal Material	Nitrile
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Minimum Operating Temperature	-30 °F
Function	4-way	Maximum Inlet Pressure Rating	5000 psi
Maximum Flow Rate	11 Gal/min	Coil Nut Tightening Torque	3 lb-ft
Installation Torque	25 lb-ft	Flow Rate	11 Gal/min
Cavity Size	C10-4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+121 °C	Actuation Type	Electrical, Manual
Operation Type	Solenoid operated, Manually operated	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Floating Center	Mounting Type	Screw in cartridge valve
Input Voltage	85% of rated voltage at 72°F (20°C) min	Coil Type	5/8" Super Coil
Leak Rate	160 @ 3000 PSI (210 BAR) cm3/min	Response Time	30-60 ms
Maximum Tank Pressure	3000 psi	Weight	0.58 lb
Override Functionality	Push/Pull - All Detent
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Flow Rate	11 GAL/MIN, 42 L/MIN
Actuation Type	Electrical, Manual	Configuration	Floating Center
Seal Type	Nitrile
