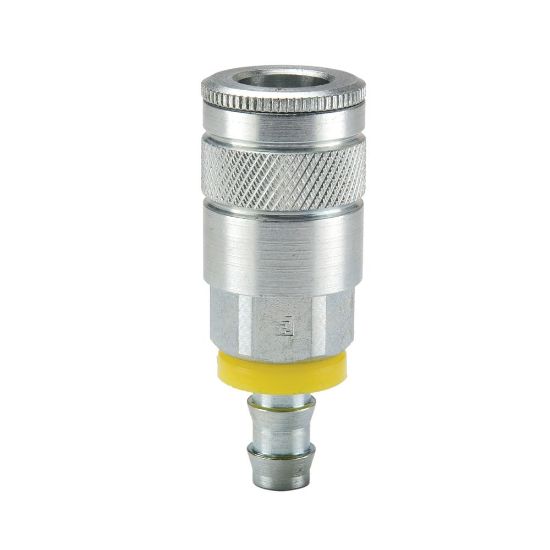

Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series - 14-5BP

Parker's general purpose Tru-Flate pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	3 in stock
Partner Available:	209 in stock

SKU: 14-5BP

$48.53

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Seal Material	Nitrile
Division	Quick Coupling Division	Maximum Operating Pressure	300 psi
Maximum Operating Temperature	250 °F	Product Type	Manual Connect
Application	Pneumatic	Plating Type	Zinc with clear trivalent chromate
Interchange Type	Tru-Flate design	Valve Type	Tubular
Hex Size	na inch
Body Material	Steel	Hose I.D. (inch)	3/8
Body Size (inch)	3/8	Connection Thread Size (inch)	na
Coupling Half	Female Coupler	Connection Type	Push-Lok hose barb

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
