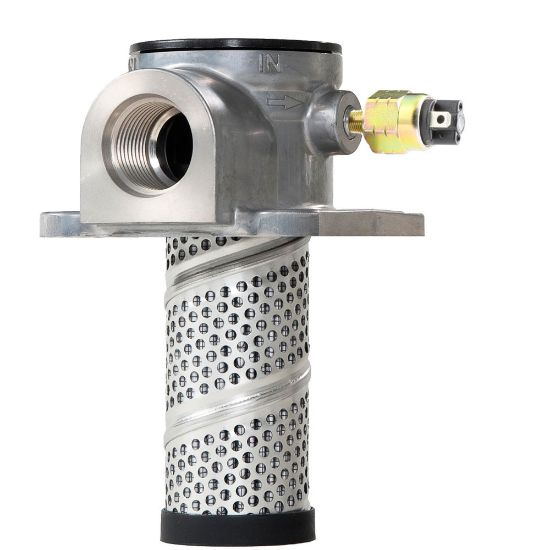

Low Pressure Tank Top Filters PT Series - PT2110QBSGS12W

Name: Low Pressure Tank Top Filters PT Series - PT2110QBSGS12W
SKU: PT2110QBSGS12W
Availability: OutOfStock

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:

Backordered

SKU: PT2110QBSGS12W

Qty:

Products specifications

Attribute name	Attribute value
Filter Element Type	10Q Microglass	Maximum Operating Temperature	225.0 °F
Flow Rate	10.0 Gal/min	Indicator Type	Pressure Switch
Compatible Element	936752	Mounting Style	Tank Mounted
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Weight	0.36 kg
Indicator Pressure Setting	Steel Weld Ring	Seal Material	Nitrile
Pressure Rating	10.3 bar	Bypass Valve Pressure Rating	25.0 psid
Options	Tank Mounted	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Housing Material	Aluminum
Seal Material	Nitrile	Indicator Type	Pressure Switch
Options	Steel weld ring	Filter Element Type	10Q Microglass
Port Connection Type	SAE-12	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Flow Rate	10 gpm (37.8 lpm)
