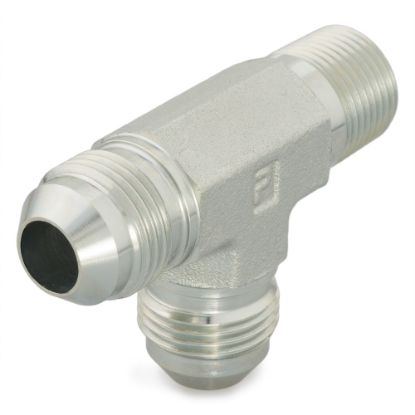

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 6 C5OX-S

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	424 in stock
Partner Available:	5822 in stock

SKU: 6 C5OX-S

$11.17

Products specifications

Attribute name	Attribute value
Connection 2 Tube Outside Diameter	na	Connection 2 Size	Male SAE-ORB
O-Ring Material	90 Durometer Nitrile	Connection Type	37° Flare
Connection 4 Tube Outside Diameter	na	Connection 1 Size	Male 37° Flare
Specifications Met	SAE J514	Body Material	Steel
Shape	90° Elbow	Connection 2 Thread Size	9/16-18 inch
Connection 3 Thread Size	na	Connection 4 Size	na
Connection 1 Tube Outside Diameter	10 mm	Maximum Dynamic Pressure	6000 psi
Division	Tube Fittings Division	Connection 3 Size	na
Dimensional Weight	0.02580935251798561 lb	Connection 3 Tube Outside Diameter	na
